Description
xOverview

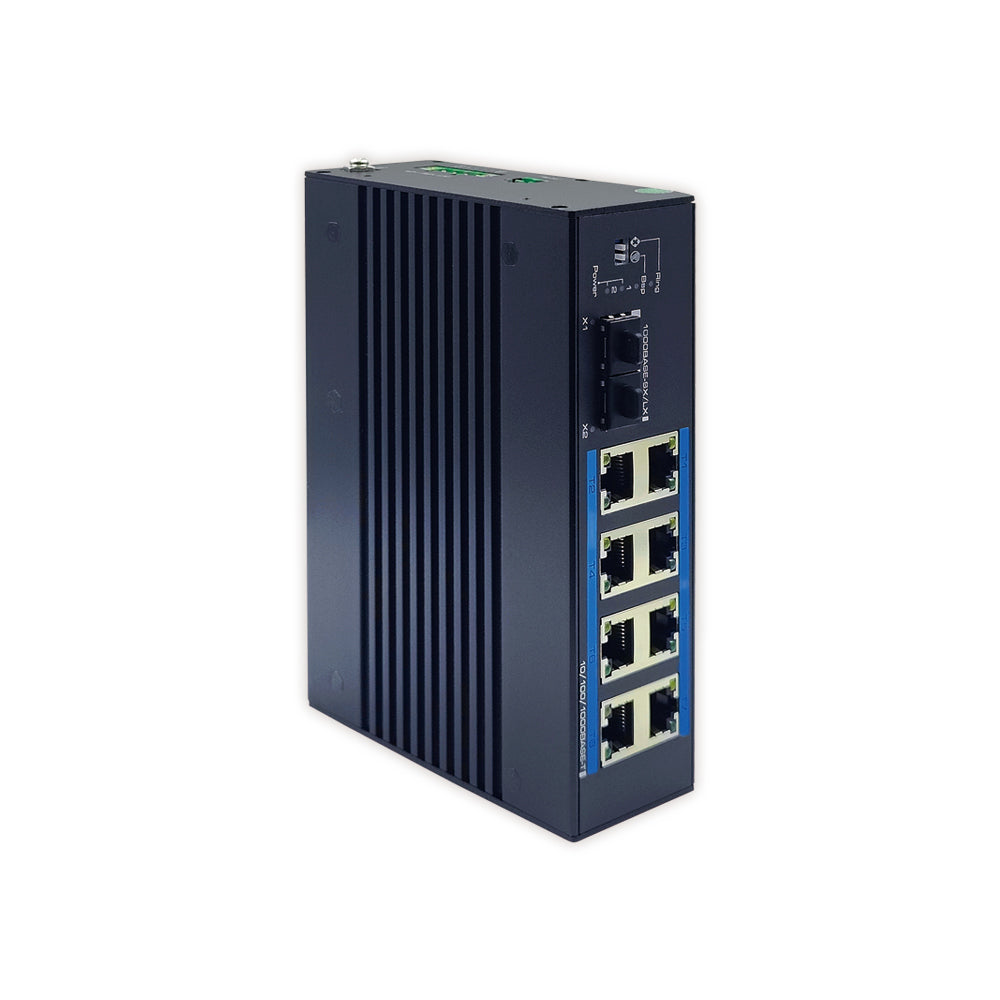

UTP7208GE-POE, full gigabit one-key ring industrial unmanged switch (DC 12-48V), provides 8*10/100/1000Base-T Ethernet PoE port and 2*1000Base-X SFP slots. It supports auto speed reduction on Ethernet ports, the transmission distance is up to 200 meters max. What’s more, the switch supports onekey fast ring, one-key broadcast storm prevention (BSP), IEEE802.3af/at and PoE watchdog. With industrial components, fanless and low power consumption design, the series meet the requirement of industrial project, and are widely used in Smart power grid, rail transportation, smart city, safe city, new energy, aerospace, smart manufacturing, military and other industrial fields.
Brand: UTEPO
Features
- Providing 8*10/100/1000Base-T Ethernet PoE ports and 2*1000Base-X SFP slots.
- Support one-key fast ring, with self-healing time in 20ms.
- Support wide voltage input range from DC 12V to DC 48V, output PoE power is 80W(12V), 120W(24V), 240W(48V).
- Support IEEE802.3af/at, max PoE power output for single port is up to 30W
- Support one-key broadcast storm prevention (BSP), preventing crash of the switches.
- Support PoE watchdog, auto reboot the connected failure PD devices.
- Support one channel relay alarm output.
- Fanless, wave metal shell, low power consumption design.
- Support installation of DIN rail and wall mounted, adapting to a variety of environments.
Application
Specification
xPhysical Port |
|
| Downlink Ports | 8*10/100/1000Base-T PoE |
| Uplink Ports | 2*1000 Base-X SFP Slots |
| Alarm Output | One channel relay alarm output, 1A@DC 9V, 2 cores, 5.08mm terminal |
| DIP Switch | 1. Enable / Disable fast ring & PoE watchdog, with self-healing time less than 20ms.
2. Enable / Disable broadcast storm prevention. |
Switching Performance |
|
| Standards | IEEE 802.3 , IEEE 802.3u, IEEE 802.3ab, IEEE 802.3Z, IEEE 802.3X, IEEE 802.1D, IEEE 802.1af/at |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 14.9Mpps |
| Packet Buffer | 2Mbit |
| MAC Table | 16k |
| Jumbo Frame | 10k bytes |
| LED Indicator | Port: 1*Link/Act (Green) & 1*PoE Status(Orange)
1*One-key Fast Ring (Green), 1*One-key BSP (Green), 2*PWR (Red) |
PoE |
|
| PoE Line Pair | 1/2(+)，3/6(-) |
| PoE Output Power | Max POE output for single port≤30W
Whole machine output PoE power: 80W(12V), 120W(24V), 240W(48V). |
Power Supply |
|
| Input Terminal | 4 PIN / 5.08mm |
| Input Voltage | IDC 12~48V DIN-rail industrial power supply (Optional) |
| Power Consumption | ≤12W (Not inlcude PoE) |
Environment |
|
| Surge Immunity | 6kV, Standard: IEC61000-4-5 |
| ESD Protection | 6kV: Contact discharge, 8kV: Air discharge, Standard: IEC61000-4-2 |
| Work Temp | -40~75℃ |
| Storage Temp | -40～85℃ |
| Work Humidity | 5%～95% RH(Non-condensation) |
Others |
|
| Material | Aluminium alloy, IP40 |
| Dimensions（W*D*H） | 163mm*110.5mm*46.5mm |
| Installation | DIN rail / Wall mounted |
| Weight | 942g±10g |
| Certificate | CE, FCC |
