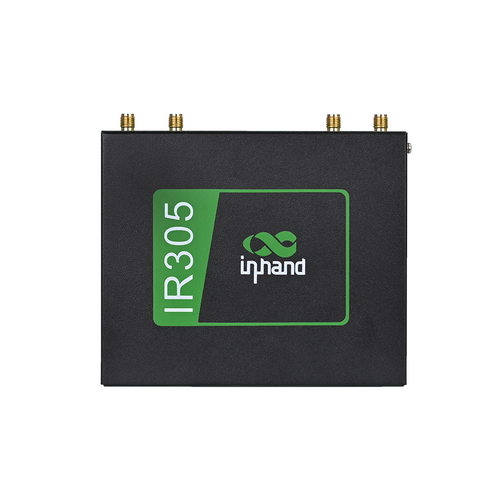

InRouter305 Industrial LTE M2M Router with 5 Ports

InRouter305 - A Compact Router with Multiple Network Access Capabilities The InRouter305 (IR305) is a dual-SIM cellular router with 5 Ethernet ports, and I/O or serial ports, integrated 4G LTE (CAT 6/4/1) and WiFi, and VPN technologies to provide easy, reliable, and secure Internet connectivity. It supports two operation modes,...
Vendor: InHand Networks
SKU: IR305-FQ78-S-WLAN
Availability: In Stock
Product Type: Industrial Routers
$290.00 Excl. GST
$290.00
Description
Description
x

InRouter305 - A Compact Router with Multiple Network Access Capabilities

The InRouter305 (IR305) is a dual-SIM cellular router with 5 Ethernet ports, and I/O or serial ports, integrated 4G LTE (CAT 6/4/1) and WiFi, and VPN technologies to provide easy, reliable, and secure Internet connectivity. It supports two operation modes, 4G Router mode and Wireless Router mode to provide uninterrupted multiple network access capabilities. The comprehensive security and intelligent software services, efficient and secure network of IR305 is suitable for commerce, energy, smart city, manufacturing, medical, etc.

Brand: InHand Networks

InRouter305 Compact Industrial LTE VPN Router

Continuity and Reliability Network Connection

With Dual SIM failover and link backup, IR305 provides a reliable network connection for users. It can also provide high-quality network services by dual-SIM failover, VRRP, multi-layer auto-detection and recovery of links failures.

Industrial LTE M2M Router

Fully Industrial Design

Metal shell, IP30 protection. EMC level 3. Wide operating temperature: -20℃~70℃. IR305 is compact, which effectively reduces the space of installation and deployment. It supports DIN rail mounting, lug mounting and wall mounting, which is suitable for a variety of IoT deployment sites.

industrial LTE and WiFi router

Strong Security Protection

The IR305 is designed with comprehensive security protection, including encrypted VPN transmission, firewall protections and multi-level authorization control.

4G VPN router with strong security protection

Free Remote Centralized Management Platform

IR305 is compatible with InHand Device Manager, a free centralized cloud management platform, allowing to remotely configure and monitor the status and parameters of IoT devices by SNMP V1/V2c/v3 protocol.

Device Manager - Join for free
  • Provide remote centralized management of your distributed InHand industrial WiFi routers & gateways
  • Upgrade firmware and update configuration in batch effectively
  • Support grouping management and access control
  • Monitor device status and data usage in real time
  • Easily track your devices in a map view
Device Manager - Remote Management

InConnect Service-Easier to Access to Downstream Devices

IR305 is compatible with InHand cloud-based platform—InConnect, which the service engineers can utilize to acess the downstream devices through the secure tunnels.

InConnect-Try it now
Remotely Manage IoT Devices by InConnect

Details

Industrial LTE M2M Router
Specification
Specification
x
305 Hardware Specifications
Hardware Platform
CPU Platform 580MHz
RAM 128MB DDR2
Flash 64MB SPI
Interface
Ethernet Port 5* 10/100Mbps fast Ethernet port, LAN/WAN port
1.5KV network isolation transformer protection
Power Supply DC9-36V, over-current protection, anti-reverse connection, 2 PIN industrial terminal block
Reset Button Pinhole reset button
I/O ( *Optional ) Support 4*IO (DO or DI can be configured)
Serial Port(*Optional) 1*RS232+1*RS485
SIM Card Drawer-type slot*1, supports dual-NANO SIM
Wi-Fi (Optional) IEEE 802.11b/g/n, 300Mbps
Antenna Connector 4G: SMA x 1; Wi-Fi: RP-SMA x 1
Note: North America models: 2 x SMA 4G antenna connectors.
Ground Terminal Supports
Mechanical Specs
Dimensions (mm) 120 x 99 x 25mm
Weight (g) 354g
Installation Method Panel mounting, rail mounting
Protection Rating IP30
Housing Metal
Cooling Fanless
Power Rate
Working Power 150-320mA@12V
Standby Power 120-200mA@12V
Peak Power 320mA@12.0V
Wi-Fi Transmit Power
Transmit Power 802.11b: 16dBm +/-2dBm (11Mbps)
802.11g: 16dBm +/-2dBm (54Mbps)
802.11n@2.4GHz: 16dBm +/-2dBm (HT20 MCS7)
802.11n@2.4GHz: 16dBm +/-2dBm (HT40 MCS7)
Ambient Environment
Storage Temperature -40 ~ 85℃
Operating Temperature -20 ~ 70℃
Ambient Humidity 5 ~ 95% (non-condensing)
Indicator
LED Power, Status, Cellular, Wi-Fi
EMC
Static EN61000-4-2, level 3
Radiation Electric Field EN61000-4-3, level 3
Pulsed Electric Field EN61000-4-4, level 3
Surge EN61000-4-5, level 3
Conducted Disturbance Immunity EN61000-4-6, level 3
Shock Wave Resistance EN61000-4-12, level 3
Power Frequency Magnetic Field Resistance EN61000-4-8, horizontal /vertical 400A/m (>level 2)
Physical Specs
Shockproof IEC60068-2-27
Vibration Resistance IEC60068-2-6
Free Fall IEC60068-2-32
Certificate
CE, FCC, CB, E-MARK, PTCRB, IC, VZW, RCM, AT&T


InRouter305 Software Specifications
Network Connection
Network Access APN, VPDN
Access Authentication CHAP/PAP
LAN Protocol ARP
WAN Protocol PPP, PPPoE, DHCP
Network Type GSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA, TDD LTE/
FDD LTE (Please refer to the Ordering Guide for frequencies.)
Network Protocol
IP Application Ping, Route Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet, SSH
IP Routing Static routing, OSPF dynamic routing
NAT Supports network address translation
Security
Network Security Stateful Packet Inspection (SPI), DoS attack defense;
Multicast filter/Ping probe packet, Access Control List (ACL);
Content URL filter, port mapping, virtual IP mapping, IP/MAC binding
Data Security Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1, IKEv2), OpenVPN protocols
Supports CA digital certificate
Reliability
Hot Backup VRRP hot backup
Link Detection Sends heartbeat packets to detect, auto redials when disconnected
Dual SIM Failover Supports dual SIM failover
Embedded Watchdog The device runs self-detection, auto recovers from malfunctions
WLAN (optional)
Protocol IEEE 802.11b/g/n
Rate Up to 300Mbps
Mode AP, STA and WDS modes
Security Open system, shared key, WPA/WPA2 certification
WEP/TKIP/AES encryption
Transmission Distance 80 meters by the line of sight (Actual transmission distance depends on the environment of the site.)
Intelligence
Integrated DTU Functions TCP, UDP transparent transmission mode, TCP Server mode
Supports conversion of Modbus RTU to Modbus TCP bridge;
Supports DCUDP, DCTCP mode
Network Management
QoS Management Bandwidth limit, IP speed limit
Configuration Telnet, web, ssh, and console
Upgrade Method Web, Device Manager
Log Local system logs, remote logs, and serial export of logs.
Power down saving of important logs.
SMS Functions Status query, restart
Dial-on-demand Dial-on-demand, data / SMS activation
Network Management Supports InHand DeviceManager, batch management
Add the user experience plan to access The InHand Networks cloud platform to enjoy efficient and convenient services.
SNMP SNMP v1/v2c/v3, support SNMP TRAP
Traffic Management Supports data traffic threshold, traffic statistics and traffic alarm
Alarms System restart alarm, LAN port online/offline alarm, data traffic alarm, SIM card failure alarm, etc.
Maintenance Tools Ping, route tracking, network speed test
Status Query System status, modem status, network connection status, and routing status
