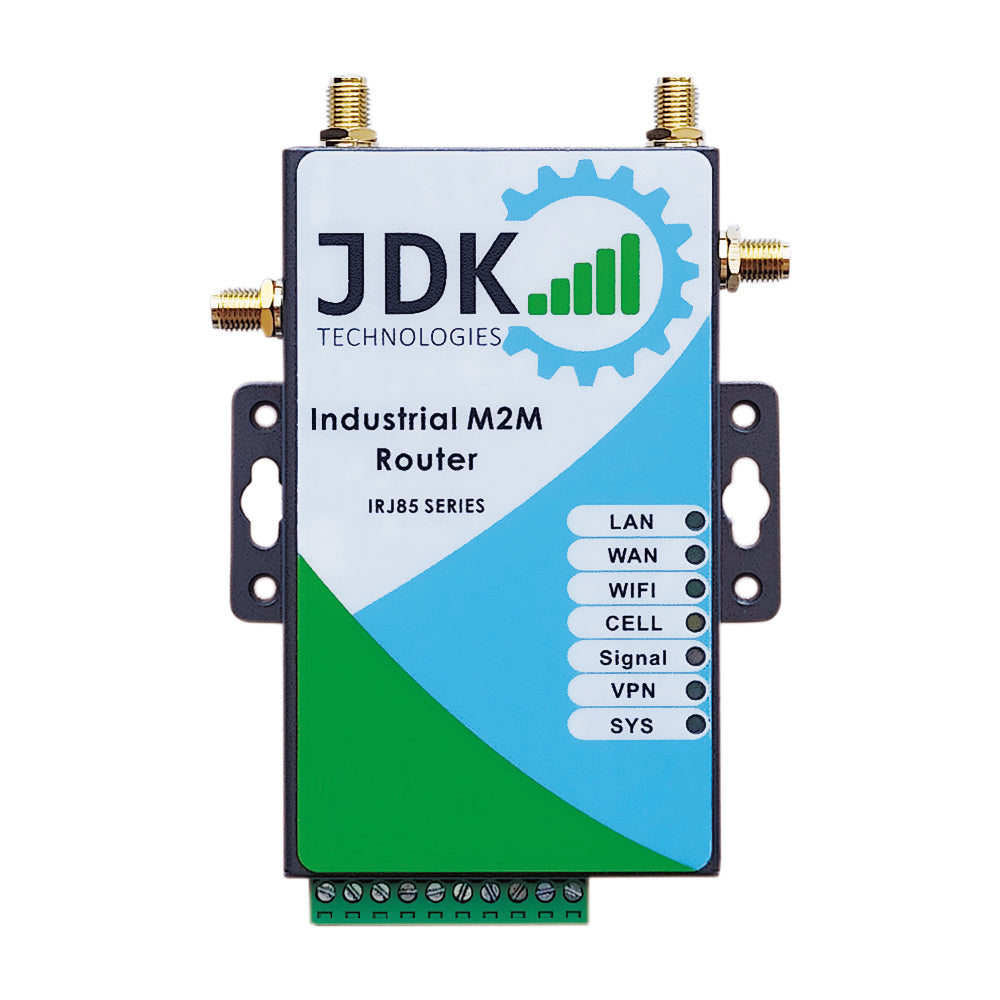

xIRJ85 Series - LTE Cellular Industrial Router
The IRJ85-LTE series Cellular Router is designed to provide a reliable 4G/5G cellular link or Internet connection to challenging industrial applications. Packed with multiple industrial interfaces such as Ethernet, RS232, RS485 and I/O, this product can be integrated with various devices deployed in remote sites and implementing remote management, monitoring and control functions. The communication module (Quetel RM500Q-AE) used in this product is a Telstra certified IoT/M2M module, making it fully compatible with both Telstra and Optus networks.
Brand: JDK technologies
The Revolution of 5G Connectivity
IRJ85-LTE series 5G cellular router offers ultra-fast connectivity, enabling seamless internet access for both home and business applications. Advanced 5G technology provides high-speed data transfer, low latency, and greater network stability for smooth video streaming and reliable remote work. Perfect for IoT, smart home devices, and mobile connectivity, this 5G router ensures consistent and powerful wireless coverage across all your devices.
Long-Term Cellular Compatibility
The IRJ85 is a high-performance, cost-effective 5G industrial router tailored for applications demanding reliable, long-term cellular connectivity. Equipped with a robust 5G NR Sub-6 GHz industrial cellular module, the IRJ85 supports both Standalone (SA) and Non-Standalone (NSA) modes, offering flexible and versatile connectivity options suitable for various industrial and IoT environments. This industrial-grade router is ideal for mission-critical applications in sectors like smart manufacturing, remote monitoring, and industrial automation, ensuring seamless integration into existing networks with backward compatibility and future-proof 5G support.
AT Command Support via Serial, ideal for legacy PLC
The IRJ85 industrial router provides robust connectivity by establishing a direct serial connection between legacy PLC systems and its cellular modem, enabling efficient management of SMS notifications through AT Command functionality. This dual-function device operates as both an SMS modem and a router, allowing seamless communication for real-time alerts and monitoring notifications from PLCs. Perfect for industrial automation and IoT applications, the IRJ85 ensures reliable communication between traditional PLC systems and modern cellular networks. Its ability to support both SMS modem and router functions simultaneously enhances operational efficiency, making it a critical solution for industries that require uninterrupted connectivity and real-time monitoring in automated systems and remote industrial environments.
Failover or Link backup
You can choose wired WAN, WiFi or LTE 4G. Any of them can serve as the primary link, and one as the backup link. When the primary link fails, the JIR800 can automatically switch over to the backup link.
Load Balancing
Load balancing is way of distributing traffic over multiple connections, for example, in a network with 4 clients that have established 10 connections to be internet each, 50/50 ratio (other rations can be applied as well)load balancing can distribute this traffic equally over two different network interfaces.
Link Bonding
Link bonding is the process of aggregating multiple individual connections into a single connection. For example, let’s assume that a device behind a router wants to establish a connection with a host on the internet, When the router is using bonding, two separate connections to a VPN server are established over each WAN interface. Then data from the end device to the host can be transferred via the server using both connections at the same time.
Specification
xMain Feature |
|
| WAN | Cellular 2G/3G/4G LTE (FDD/TDD) WiFi as WAN Failover/Failback and Load Balance (Bandwidth bonding) Advanced Modem Failure Check IP Passthrough |
| LAN | DHCP Server, Client, Relay DNS and DNS Proxy DDNS UPnP DMZ Multicast/Multicast Proxy QoS (DSCP and Priority Queuing) MAC Address Filtering VLAN 802.1Q |
| WiFi | 802.11 a/b/g/n Up to 64 connected devices WPA2 Enterprise (WiFi) Hotspot/Captive Portal SSID-based Priority |
| VPN AND ROUTING | IPsec Tunnel, PPTP, L2TP, GRE Tunnel, OpenVPN (option), DMVPN (option);OSPF/BGP/RIP, Virtual Server/Port Forwarding, IPv6 (option), VRRP |
| MANAGEMENT | E-Lins Enterprise Cloud Network Management System (NMS) Web UI, API, CLI/SSH/Telnet Data Usage Alerts (router and per client) Advanced Troubleshooting (support) Device Alerts SMS control SNMP TR-069 |
| SECURITY | RADIUS and TACACS+ support 802.1x authentication for Ethernet Certificate support ALGs MAC Address Filtering Advanced Security Mode (local user management only) Per-Client Web Filtering IP Filtering Content Filtering (basic) Website Filtering Zone-Based Object Firewall with host address (IP or FQDN), port, and mac address Other Details: NAT, SPI, port blocking, service filtering (FTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, SSH), protocol filtering, WAN ping (allow/ignore) |
| OPTIMIZED IP COMMUNICATIONS | Automated WAN Failover/Failback support WAN Affinity and QoS allow prioritization of VoIP services Advanced VPN connectivity options to HQ SIP ALG and NAT to allow VoIP and UC communications to traverse firewall MAC Address Filtering 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN Private Network support (wired and 4G WAN) |
| Firmware update | support firmware update locally, remotely (LAN, WiFi and OTA WAN) and RMS (Remote Management System) option |
| DI/DO (Digital Input and Output) | 4 ports, 0-3.3V. Support status monitor via SMS and Email; Option: customers can order E-Lins switch control board (5-40VDC supported) |
| Others | Cellular and WiFi MIMO supported; Syslog (local and remote); DDNS; DNS proxy; Optimized EMC design; Real-time clock (NTP, support update with defined hours); WAN/LAN/Memory statistics; Local/remote profiles backup and retrieve; |
Feature Details |
|
| Redundancy and Load Balancing | Failover/failback with 4G, 3G, 2G; WAN failure detection, VRRP; Auto-dial feature, keep alive link; LCP, ICMP check; Built-in watch dog; Cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client three line redundancy; Option Feature: Ethernet with rule selection, advanced load balancing options (round robin, spillover, data usage, rate) |
| Intelligent Routing | UPnP, DMZ, virtual server/port forwarding, routing rules, NAT-less routing, wired or wireless WAN-to-LAN IP passthrough, route management, per-interface routing, content filtering, IP filtering, website filtering, per-client Web filtering, local DHCP server, DHCP client, DHCP relay, DNS, DNS proxy, Split DNS; ALGs: PPTP, SIP, TFTP, FTP, IRC; MAC address filtering, Dynamic DNS, LAN/WAN affinity, VLAN 802.1Q (coming Q4), STP, enterprise routing protocols: BGP/OSPF/RIP, multicast proxy support, IP setting overrides, IPv6 support option |
| Management | web-based GUI (local management), optional RADIUS or TACACS+ username/password; remote WAN web-based management w/ access control (HTTP, HTTPS); SNMP v1, v2c, & v3; CLI over SSH, SSH to serial, SSH to telnet; API; one-button firmware upgrade; modem configuration, update, and management; modem data usage w/ alerts, per-client data usage; custom AT scripting to modems; SMS; TR-069; Option: Enterprise Cloud Remote Management System (RMS): cloud-enabled management and application platform (subscription-based); |
| VPN | IPsec – Tunnel, NAT-T, and transport modes; connect to E-Lins, Cradlepoint, Cisco/Linksys, CheckPoint, Watchguard, Juniper, SonicWall, Adtran and others; Hash (MD5, SHA128, SHA256, SHA384, SHA512), Cipher (AES, 3DES, DES); GRE tunneling; PPTP support; L2TP, L2TP over IPSec support; VPN pass-through; OpenVPN support (option); DMVPN (option); Certificate support (option); Multiple networks supported in a single tunnel, site-to-site dynamic VPN with NHRP; VTI Tunnel support; |
| SMS, SMS Control and Alarm | Receive and Send the SMS; WAN Cell APN configuration via SMS; SMS/Voice Control and Alarm. SMS or Call to control router to be online, offline, reboot, signal and status monitor; SMS is default feature, Voice is option; SMS text sending and receiving; |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
Specifications |
|
Main |
|
| Hardware | CPU: 580Mhz; RAM: 512Mb DDR, option up to 2Gbit; Flash: 128M, option for up to 4Gbit; |
| WAN | Integrated Category 12/9/6/4/3 LTE Advanced LTE modem (with DC-HSPA+/ EVDO/3G and 2G failover); One 10/100Mbps Ethernet ports – cable/DSL/T1/satellite/Metro Ethernet; WiFi as WAN, Metro WiFi; MIMO “N” 2.4 GHz; 802.11 a/b/g/n; |
| LAN | 802.11 a/b/g/n; Two LAN/WAN switchable 10/100Mbps Ethernet ports; |
| Ports | Power (DC Jack, 2 Pin Terminal Block for wire connection) 2 Ethernet LAN/WAN 2 cellular antenna connectors (SMA) 1 GPS antenna connector (SMA) 2 WiFi antenna connectors (SMA) Serial connector – RS232 / RS485 (Terminal Socket) 4 Digital I/O ports (Terminal Socket) Console Port (Terminal Socket) |
| Power | Dual Power Inputs / Power Failover; POE (Power over Ethernet); DC input steady state voltage range: 5-40 VDC / 5-60VDC option, (requires inline fuse for vehicle installations); For 9–24 VDC installations, use a 3 A fuse; For > 24 VDC installations, use a 2.5 A fuse; Reverse polarity and transient voltage protection per ISO 7637-2 Ignition sensing (automatic ON and time-delay OFF); Power consumption: Idle: typical=100mA@12VDC; Maximum=500mA@12VDC; Tx/Rx: typical=300mA@12VDC; Maximum=800mA@12VDC; 12VDC 2A adapter recommended |
| LEDs | SYS*1, VPN (IPSec)*1, Cell Signal*1, Cell*1, WAN*1, LAN*1, WiFi*1 |
| UIM/SIM Card Slot | Support 1.8V/3V UIM/SIM cards |
| Others | Reset button, console port |
| Size | PCBA: 96mm x 56mm x 14mm With case: 100mm x 60mm x 21mm |
| Weight | About 220g (not including the antenna) About 330g (including the antenna) About 650g (including all accessories, without package) |
| Temperature | All models: −35 °C to 75 °C ambient air operating; All models: −40 °C to 85 °C storage; |
| Humidity (non-condensing) | 5% to 95% operating 5% to 95% storage |
| Case | Aluminum alloy; Black color; Customization is available |
Cellular |
|
| Compatible Mobile Networks | 4G LTE (FDD/TDD) UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+) GSM EDGE/GPRS CDMA1x CDMA2000 EVDO Rev 0, Rev A, Rev B TD-SCDMA/TD-LTE |
| Cellular Frequency | 4G FDD LTE:Band 1–2100Mhz; Band 2–1900Mhz; Band 3–1800Mhz; Band 4–AWS(1700/2100Mhz); Band 5–850Mhz; Band 7–2600MHz; Band 8–900Mhz; Band 9 – 1700Mhz; Band 12–700Mhz; Band 13–700(B13)Mhz; Band 14 – 700Mhz; Band 17–700(B17)/AWS; Band 18; Band 19–800Mhz; Band 20–DD800Mhz; Band 21; Band 25–1900Mhz G Block； Band 26； Band 28– 700Mhz； Band 29； Band 30； Band 31– 450Mhz； Band 32 – 1500Mhz (SDL)； Band 66 – 1700Mhz； Band 72 – 450Mhz； Other FDD band… UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD): 2100(B1)/1900(B2)/1800(B3)/ 1700/AWS B4/850(B5)/900(B8)/800(B6)/1800(B9)/850 (B19) Quad-band EGSM 850/900/1800/1900Mhz; CDMA1x/EVDO: 800/1900Mhz, option for 450Mhz; 3G TD-SCDMA: 2010~2025MHz/1880~1920MHz Notes: There are many different band and frequencies. Please confirm the detailed band and frequency with your carriers before order. |
| Bandwidth | 4G LTE FDD LTE: downlink 100Mbps / 150Mbps / 300Mbps / 600Mbps / 1200Mbps; uplink 50Mbps / 150Mbps / 300Mbps / 600Mbps; TDD LTE: 150Mbps downlink, 50Mbps uplink; DC-HSPA+: Downlink 42Mbps, Uplink 5.76Mbps; HSPA+(H): Downlink 21Mbps, Uplink 5.76Mbps; HSPA+(L): Downlink 14.4Mbps, Uplink 5.76Mbps; HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps; HSDPA: Downlink 7.2 Mbps, Uplink 384k bps; WCDMA/UMTS: Downlink/Uplink 384 kbps; EDGE: Downlink 384 kbps, Uplink 118 kbps; GPRS: Downlink 108 kbps, Uplink 42.8 kbps; CDMA1x: Downlink/Uplink 153.6kbps; CDMA EVDO: Rev B: 14.7Mbps downlink, 5.4Mbps uplink Rev A: 3.1Mbps downlink, 2.4Mbps uplink Rev O: 2.4Mbps downlink, 153.6kbps uplink 3G TD-SCDMA: 2.8Mbps Notes: the bandwidth is peak value. Real value depends on carrier network support. |
| Network and Band Lock Feature (Option) | Default is unlocked, can use this feature to lock |
WiFi (WLAN) |
|
| Wi-Fi | 802.11a/b/g/n;Can be used as AP and client; Frequency Range:2.412 ~ 2.472Ghz Speed:802.11n in 300Mbps; |
Others |
|
| Warranty | 3 Years; Other warranty services can be customized |
| Package Contents | H685 Series wireless Router; Ethernet Cable; Power Adapter; Cellular Antenna; WiFi AntennaOthers depends on option features (GPS antenna, Serial Cable, etc.) |
