JDK-POE-4P12 Compact Industrial POE Switch
JDK-POE-4P12 Compact Industrial POE Switch
JDK-POE-4P12 Compact Industrial POE Switch
JDK-POE-4P12 Compact Industrial POE Switch

JDK-POE-4P12 Compact Industrial POE Switch

Overview The JDK-POE-4P12 Series is a compact industrial-grade 4-port 10/100/1000T 802.3at PoE switch with an additional 1-port 100/1000X SFP for Gigabit Ethernet connectivity. Featuring a 12~48VDC input and built-in voltage booster, this unmanaged solar-powered PoE switch is engineered to meet stringent industrial standards. Designed for robust performance in harsh environments,...
Vendor: JDK technologies
SKU: JDK-POE-4P12
Availability: In Stock
Product Type: Industrial PoE Switch
$143.00
$143.00
Description
Description
x

Overview

The JDK-POE-4P12 Series is a compact industrial-grade 4-port 10/100/1000T 802.3at PoE switch with an additional 1-port 100/1000X SFP for Gigabit Ethernet connectivity. Featuring a 12~48VDC input and built-in voltage booster, this unmanaged solar-powered PoE switch is engineered to meet stringent industrial standards. Designed for robust performance in harsh environments, it offers dependable operation with resistance to vibration and shock and a wide temperature range. Compliant with CE and FCC certifications and rigorously tested with a 100% burn-in process, it ensures reliability for demanding industrial applications. As an economical and efficient solution for industrial Ethernet connectivity, it is a smart choice for your network needs.

Brand: JDK technologies

JDK-POE-4P12

Wide Range Power Input

The power input supports a wide range of 12~24VDC, offering flexibility for various setups. With its power booster function, this system delivers a 90-watt PoE budget at 24VDC, and a 60-watt PoE budget at 12VDC, ensuring reliable power distribution for your devices. Ideal for applications requiring scalable power input and PoE performance, this solution meets diverse energy demands efficiently.

Wide Range Power Input

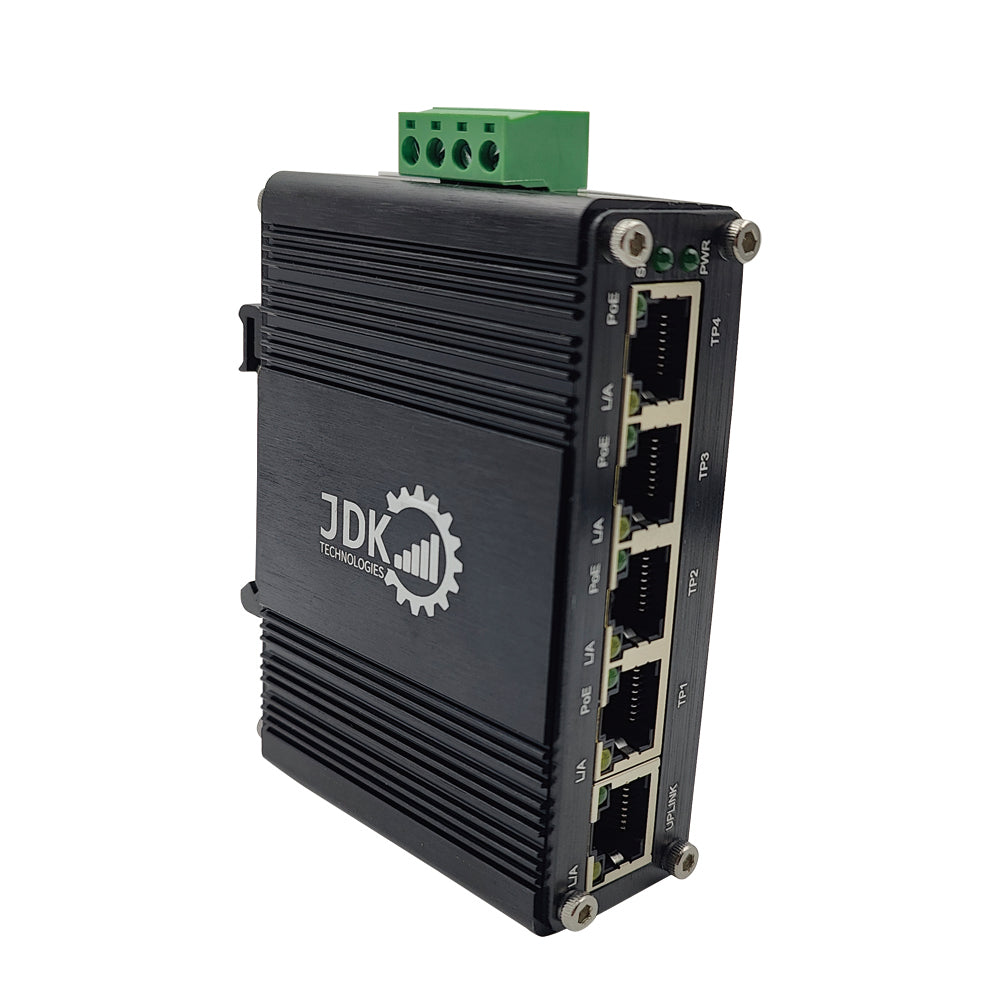

Durable and Reliable Industrial Ethernet Switch

The JDK-POE-4P12 Series features an industry-standard IP40 dustproof and sealed design, housed in a rugged high-strength metal case for maximum durability. Engineered to operate flawlessly in extreme temperature ranges from -40°C to 80°C (-40°F to 176°F), this industrial PoE switch is perfect for harsh environments, ensuring long-lasting and reliable performance in demanding industrial applications. Support DIN-Rail & Wall Mount.

Industrial POE Switch

Ideal for IP CCTV, VoIP Devices and wireless AP applications

JDK-POE-4P12 Series offers IEEE 802.3af/at 30W solar PoE ports, ensuring seamless connectivity and power delivery. With all ports supporting 10/100/1000Mbps self-adaptive full duplex, it guarantees high-speed data transfer and efficient operation. Perfect for small to business networks, especially for IP CCTV, VoIP Devices and wireless AP applications. This PoE switch simplifies installation while delivering stable and cost-effective performance.

Industrial POE Switch

Details

Industrial POE Switch
Specification
Specification
x

Ethernet
Standards IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate 14,880pps (10Mbps);148,800pps (100Mbps);1,488,000pps (1000Mbps)
Packet Buffer 1Mbits
Packet Length 8K
Switch Fabric 10Gbps/non-blocking
Exchange Property Backplane bandwidth: 20Gbps;
Backplane bandwidth: 20Gbps;
Connector 4 ports with 802.3at PoE+ injector function (Ports 1 to 4)

Interface
Connector 4 x RJ45
Optical Port 1 x SFP 1000Base-X or 100Base-FX (auto detection)

PoE (Power over Ethernet)
Standard IEEE802.3af/at
Port RJ45
MAC Table 4/5(+), 7/8(-)
Power Pin Assignment 10k bytes
LPoE Budget Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

Environmental
Work Temp -40°C to 80°C (-40°F to 176°F)
Storage Temp -40°C to 85°C (-40°F to 185°F)
Relative Humidity 5%～95% RH(Non-condensation)
MTBF> 200,000 hrs

Electrical and Mechanical
Input Power 12~48VDC (Terminal Block)
Power Consumption <125W(Non-PoE<6W)
Power Input Overload Automatic Resettable
Reverse Polarity Present
Dimensions (WxDxH) 95 x 70x 29m
Weight 0.25Kg
Casing Aluminum Case

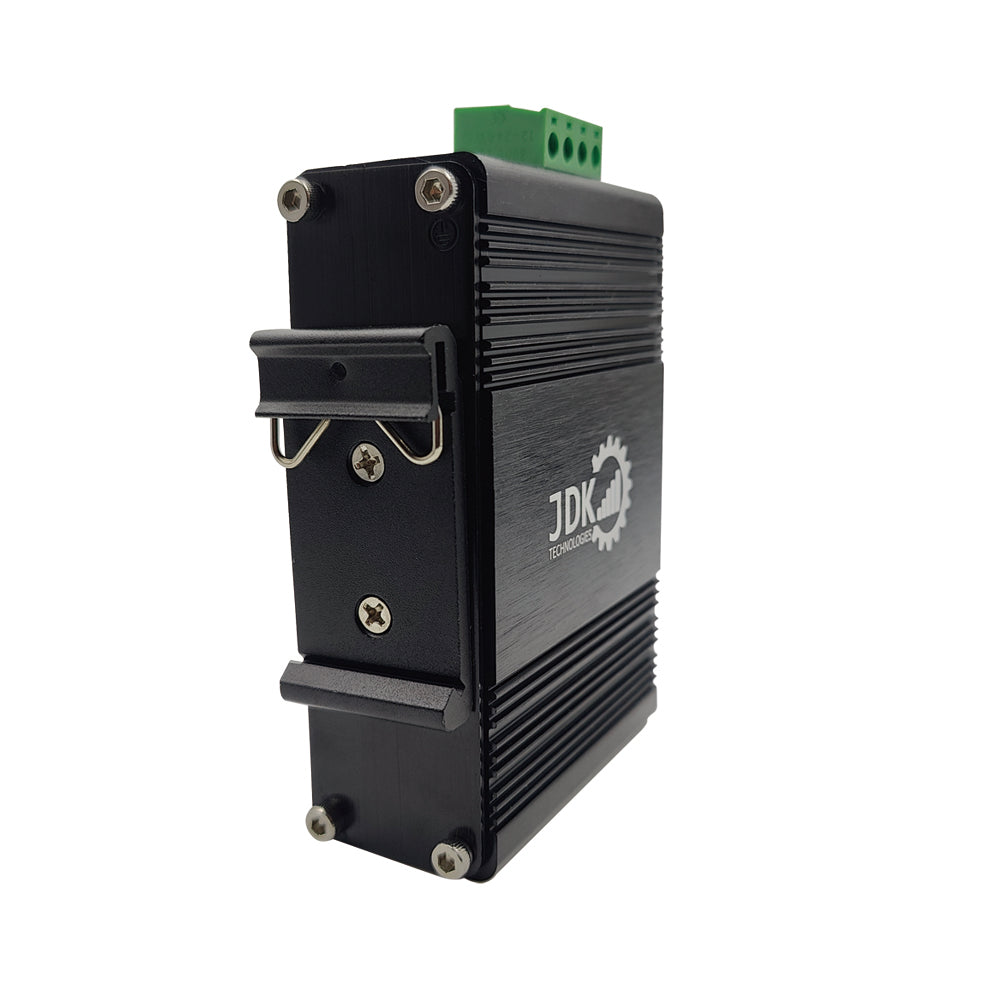

Mounting Options DIN-Rail / Wall-mount

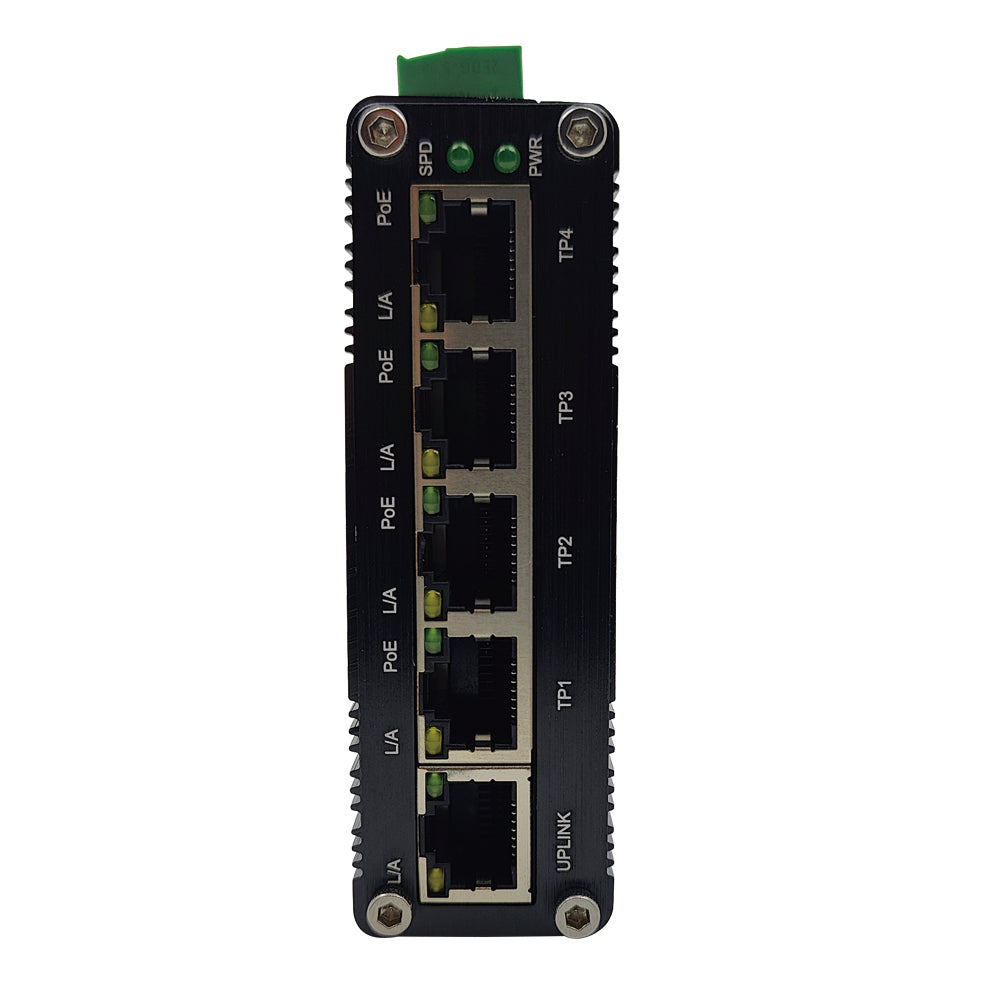

LED
PWR Power
L/A Link/Activity
PoEPoEPoEPoE PoE Status

Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
