SE01 - LoRaWAN Soil Moisture & EC Sensor
SE01 - LoRaWAN Soil Moisture & EC Sensor
SE01 - LoRaWAN Soil Moisture & EC Sensor

SE01 - LoRaWAN Soil Moisture & EC Sensor

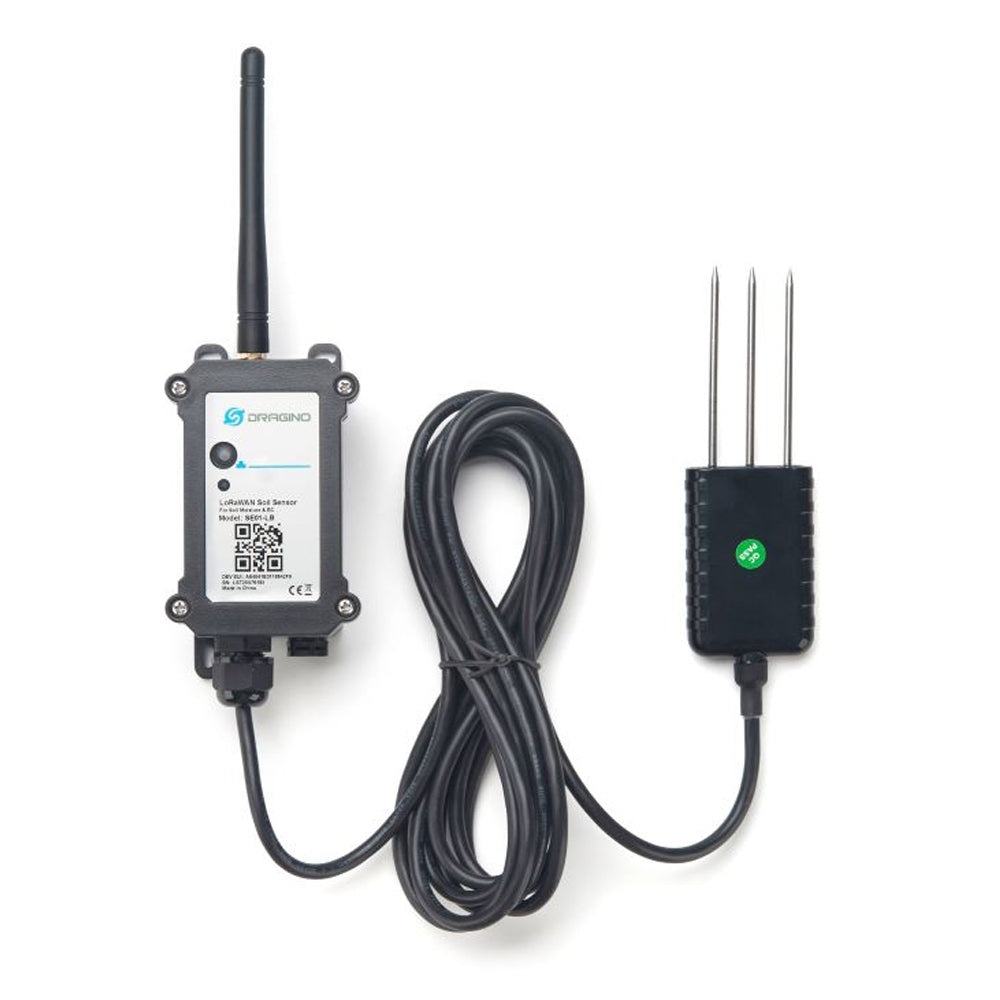

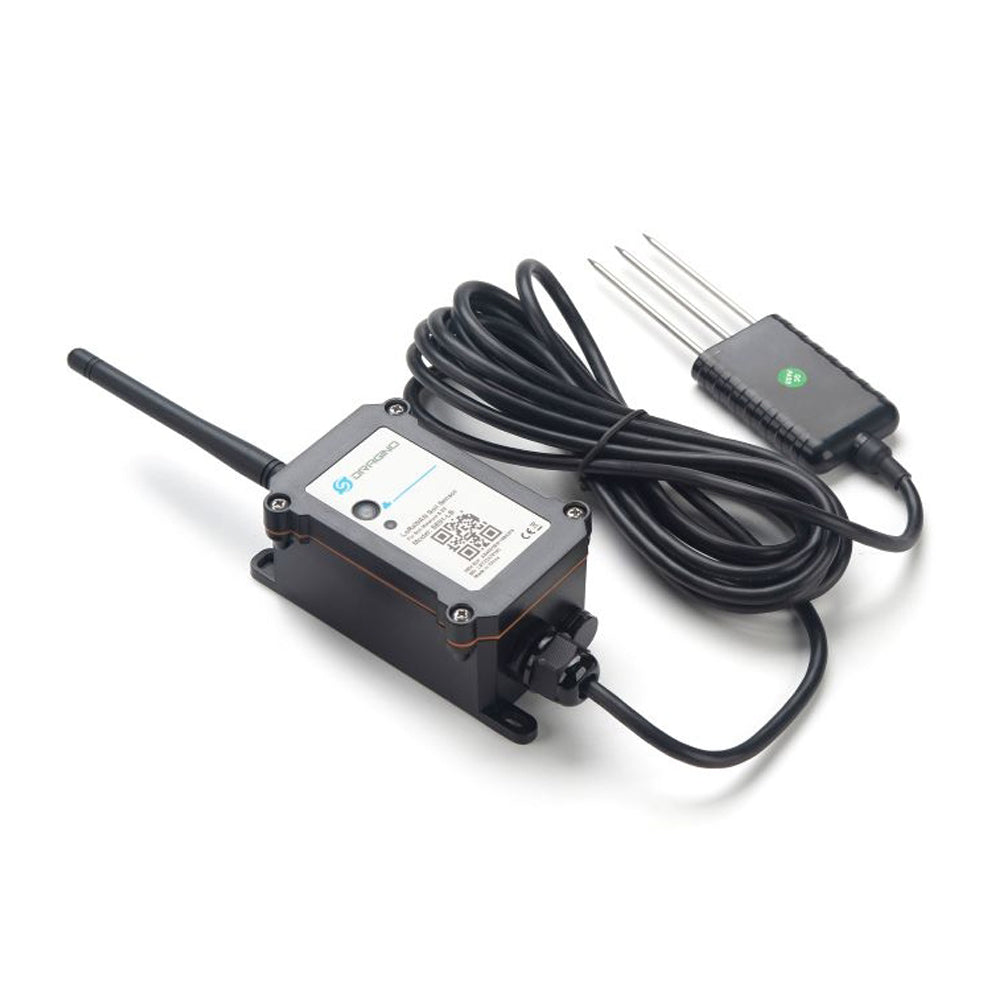

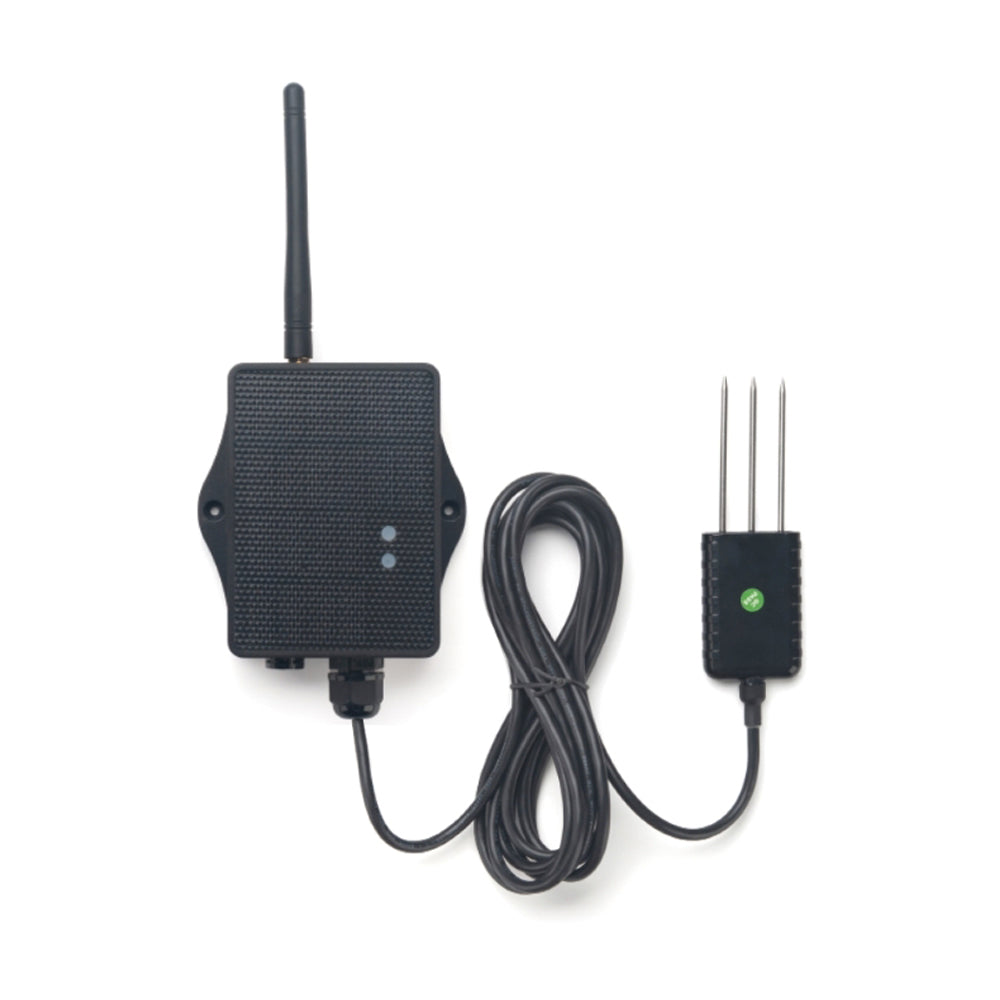

Overview The Dragino SE01-LB/LS is a LoRaWAN soil moisture and EC sensor designed for agricultural IoT applications. It accurately measures soil moisture, temperature, and conductivity, making it suitable for saline-alkali and loamy soils. Using the FDR method, it ensures precise readings with compensation for soil temperature and conductivity and is...
Vendor: Dragino
SKU: SELS
Availability: In Stock
Product Type: Sensor
$171.00 Excl. GST
$171.00
Communication Type: LoRaWAN
Batter Type: Solar +Battery
Description
Description
x

Overview

The Dragino SE01-LB/LS is a LoRaWAN soil moisture and EC sensor designed for agricultural IoT applications. It accurately measures soil moisture, temperature, and conductivity, making it suitable for saline-alkali and loamy soils. Using the FDR method, it ensures precise readings with compensation for soil temperature and conductivity and is factory-calibrated for mineral soil. With LoRa wireless technology, the SE01-LB/LS enables long-range, low-power data transmission with strong interference resistance. It supports BLE configuration and OTA updates, simplifying setup and maintenance. Powered by an 8500mAh Li-SOCI2 battery or a solar + Li-ion battery, it can operate for up to five years. Each device comes with preloaded unique keys for seamless LoRaWAN registration and automatic connection upon activation.

Soil Moisture & EC Sensor

LoRaWAN Long-Range Communication

With LoRaWAN technology, the SE01-LB/LS sensor transmits data over ultra-long distances while consuming minimal power. This feature makes it ideal for large buildings, shopping malls, and public spaces, ensuring reliable, uninterrupted data collection.

Soil Moisture & EC Sensor

NBIoT cellular communication

Fully compatible with Australian telcos narrow band network, SE01-LB/LS can also upload data via the existing cellular network with ultra-low power consumption.

Soil Moisture & EC Sensor

Ultra-Low Power & Long Battery Life

Designed for long-term deployment, the sensor is powered by a 2400mAh battery, allowing up to 5 years of operation without frequent maintenance. This energy-efficient design reduces the need for battery replacements, making it cost-effective and reliable.

Soil Moisture & EC Sensor

BLE Configuration & OTA Updates

The device supports Bluetooth Low Energy (BLE) configuration and over-the-air (OTA) firmware updates, enabling users to set up and upgrade the device remotely. This eliminates the need for manual intervention, simplifying deployment and maintenance.

Soil Moisture & EC Sensor

Multi-Parameter Measurement

The SE01-LB/LS sensor accurately measures soil pH and temperature, making it ideal for agricultural applications. By providing real-time data on soil acidity and thermal conditions, it helps farmers and researchers monitor soil health, optimize fertilization strategies, and improve crop productivity.

Soil Moisture & EC Sensor

Details

Soil Moisture & EC Sensor
Specification
Specification
x

Common DC Characteristics
Supply Voltage Built-in Battery , 2.5v ~ 3.6v
Operating Temperature -40 ~ 85°C

Soil Moisture
Range 0-100.00 V/V %
Resolution 0.01 V/V %
Accuracy ±3% (0-53%)V/V %, ±5% (>53%) V/V %
Measure Method FDR , with temperature &EC compensate

Soil Temperature
Range -40.00℃～85.00℃
Resolution 0.01℃
Accuracy -10℃～50℃:<0.3℃ ,All other: <0.6℃
Measure Method RTD, and calibrate

Soil Conductivity
Range 0-20000 uS/cm(25℃)(0-20.0EC)
Resolution 1 uS/cm
Accuracy 2%FS
Measure Method Conductivity , with temperature compensate

LoRa Spec
Frequency Range, Band 1 (HF) 862 ~ 1020 Mhz
Max +22 dBm constant RF output vs.
RX sensitivity down to -139 dBm.
Excellent blocking immunity

Battery
Li/SOCI2 un-chargeable battery
Capacity 8500mAh
Self-Discharge <1% / Year @ 25°C
Max continuously current 130mA
Max boost current 2A, 1 second

Power Consumption
Sleep Mode 5uA @ 3.3v
LoRa Transmit Mode 125mA @ 20dBm, 82mA @ 14dBm
