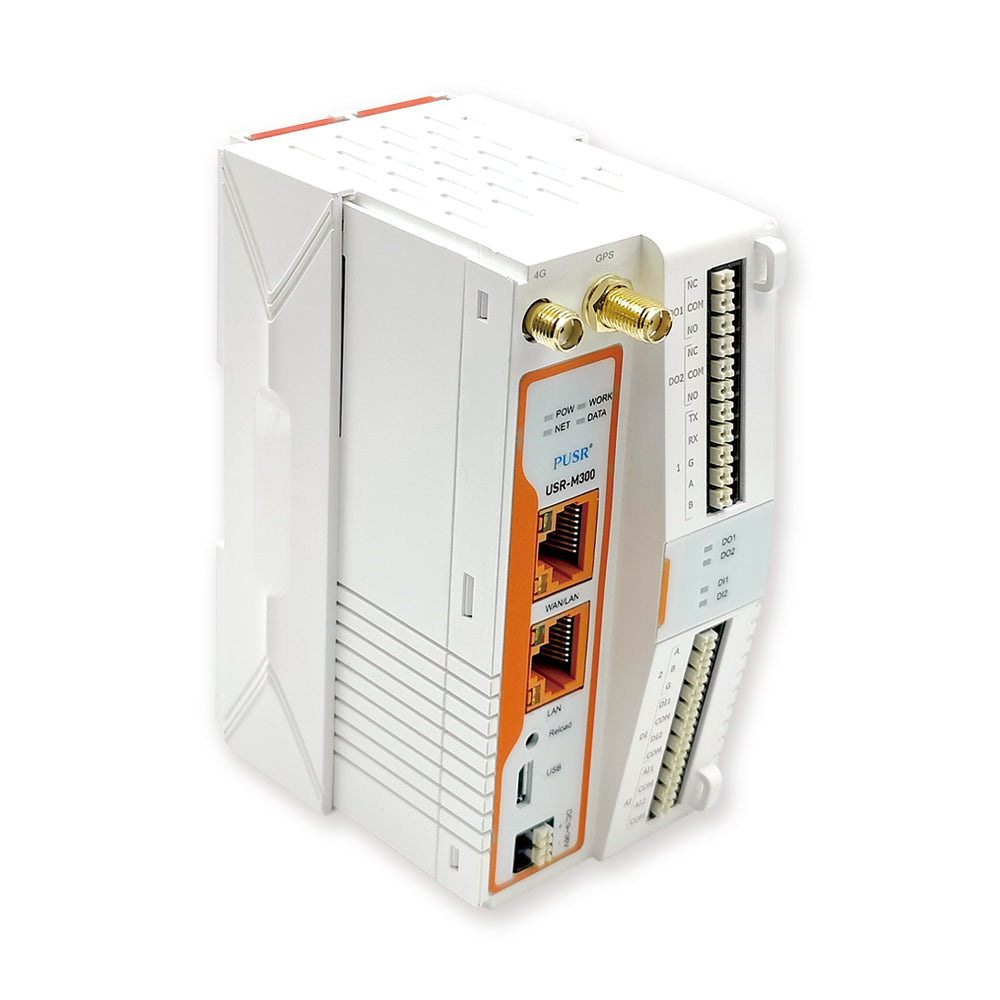

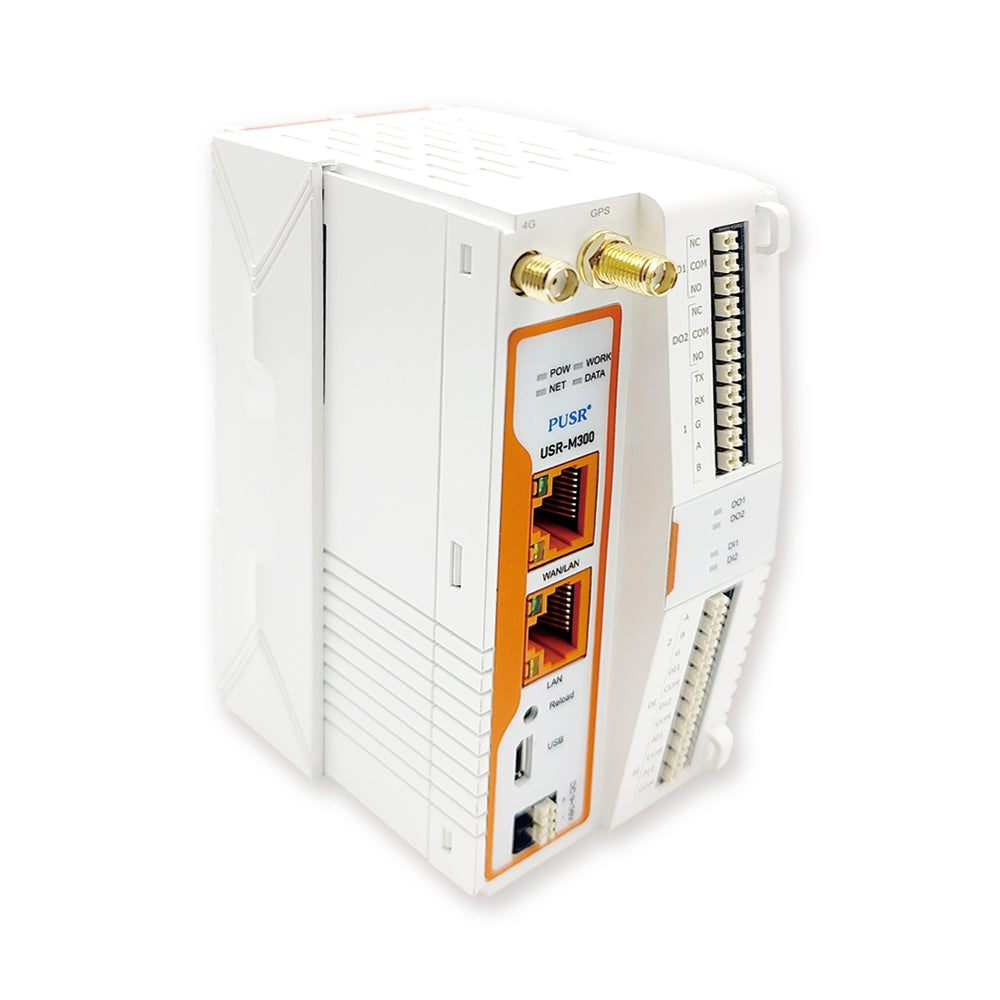

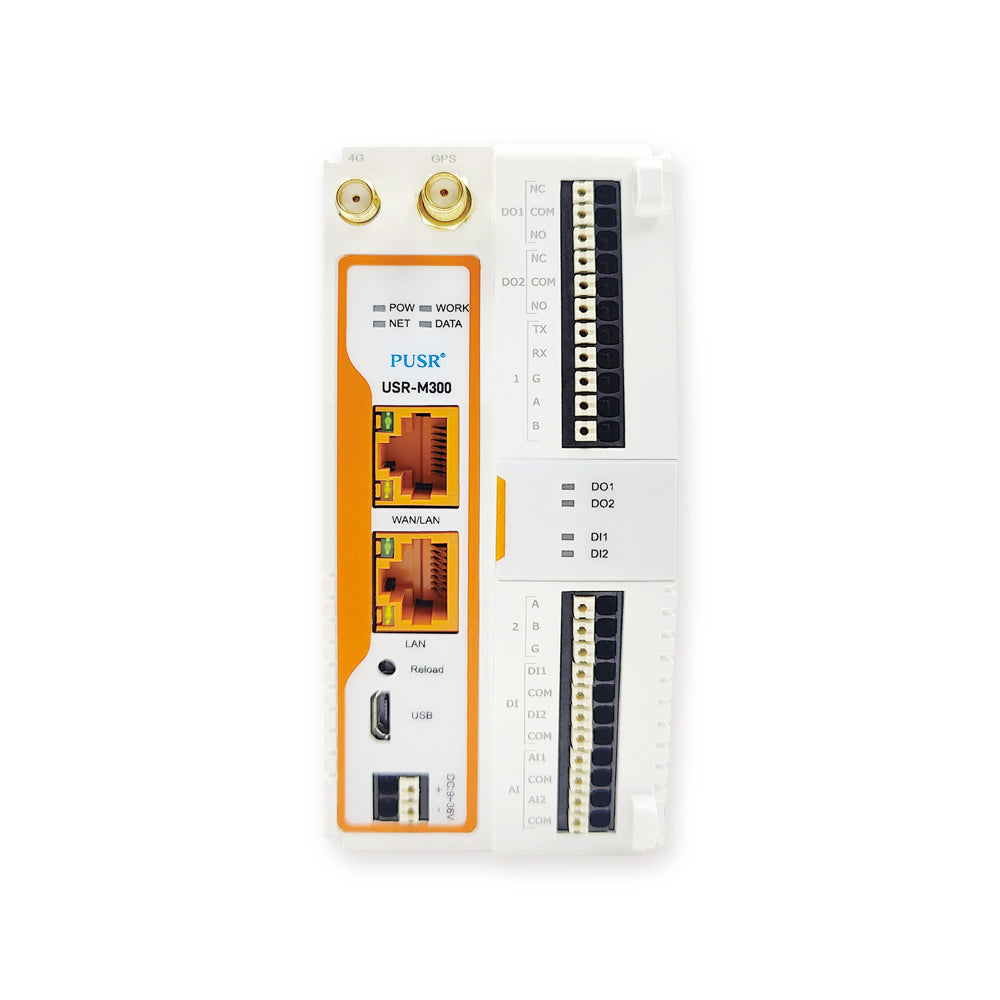

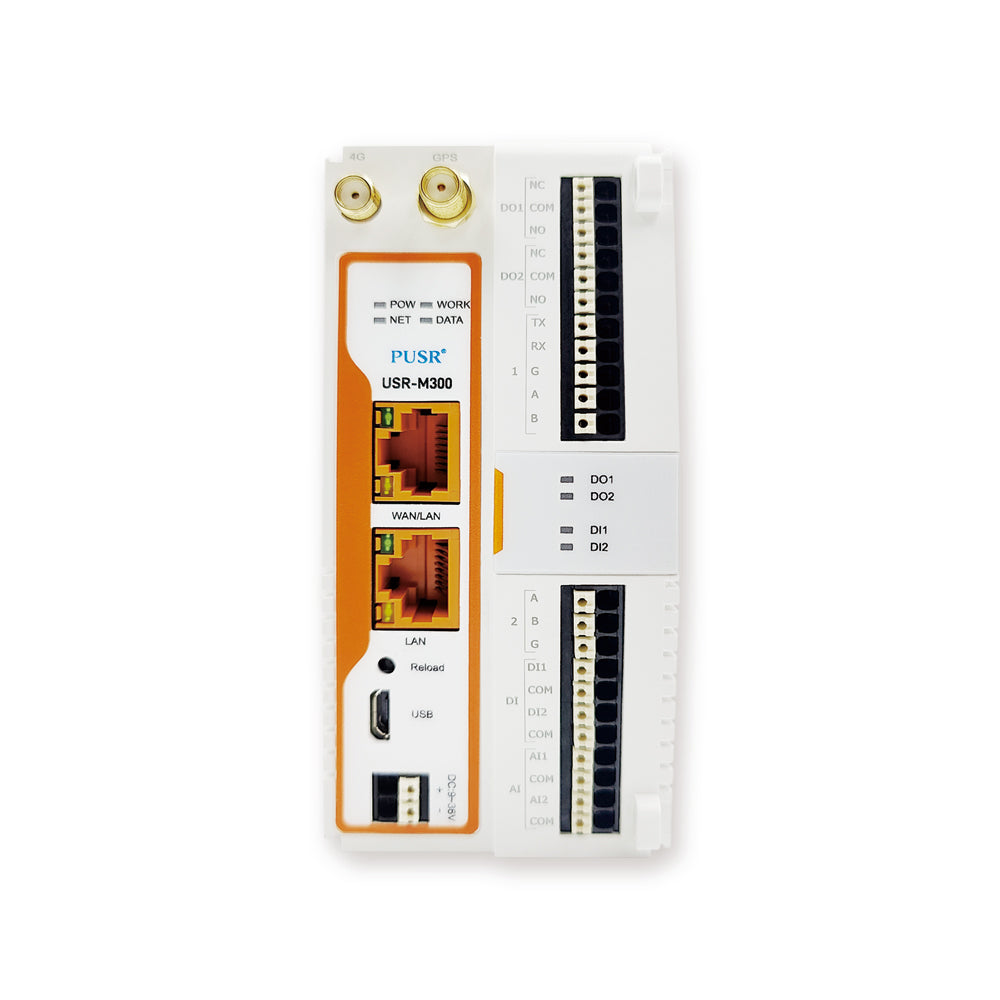

M300 High Performance Edge IoT Gateway

Overview The USR-M300 is an industrial-grade edge computing IoT device with a modular design for customizable I/O expansion. It features powerful edge computing capabilities, reducing cloud reliance by processing data locally and actively reporting to platforms like PUSR Cloud, Alibaba Cloud, and AWS via MQTT. With support for Ethernet, ADSL,...
Vendor: PURS
SKU: USR-M300
Availability: In Stock
Product Type: Industrial Gateway
$249.00
$249.00
Type: USR-M300
Description
Description
x

Overview

The USR-M300 is an industrial-grade edge computing IoT device with a modular design for customizable I/O expansion. It features powerful edge computing capabilities, reducing cloud reliance by processing data locally and actively reporting to platforms like PUSR Cloud, Alibaba Cloud, and AWS via MQTT. With support for Ethernet, ADSL, and LTE Cat4 connectivity, it ensures reliable and flexible network deployment, making it ideal for automation and industrial IoT applications.

Brand: PURS

Edge IoT Gateway

Interfacing with Modbus Devices

The M300 supports data collection from Modbus devices via Ethernet (MODBUS TCP) and serial (MODBUS RTU) interfaces, handling up to 2,000 data points. It’s a reliable and flexible solution for industrial automation and IoT applications.

Edge IoT Gateway

Edge Computing with Node-RED

Equipped with Docker and built-in Node-RED, this device enables rapid implementation of edge computing logic and intuitive graphics dashboards. Its advanced capabilities streamline automation, offering a flexible and efficient solution for industrial IoT, data visualization, and process optimization.

Edge IoT Gateway

Modular IO extensions

This device supports the expansion of various types of I/O modules, including DI, DO, AI, AO, IO. Its modular design ensures adaptability to diverse industrial applications, enabling seamless integration with existing systems.

Edge IoT Gateway IO modules

Cloud integration

This device offers quick and seamless access to PUSR Cloud, Alibaba Cloud, and AWS, leveraging MQTT protocols for reliable and efficient data communication. Its cloud compatibility ensures smooth integration with leading IoT platforms, enabling real-time data exchange, remote monitoring, and advanced analytics.

Edge IoT Gateway

Details

Edge IoT Gateway
Specification
Specification
x

Power supply
Power input DC 9~36Vv
Working current Average：194.6mA @12V，
MAX：240mA @12V

Serial port
No. 2*serial port
Serial port 1: RS232/485 Serial port 2: RS485
Band rate 600~230400bps, user-defined baud rate is supported
Data bits 7,8
Stop bits 1,2
Parity None, Even, Odd
Baud Rate 600~230.4 Kbps/td>
Data Bits 5,6,7,8
Stop Bit 1,2

IO interface

DI 2*DI, 0 - 2 V detected as logic low, 9 - 36 V detected as logic high
DO 2*Relays,
DC contacts rating @R(at resistive load)10A / 28V DC
AC contacts rating @R(at resistive load)10A / 277V AC,NO
AC contacts rating @R(at resistive load)5A /250V AC, NC
AI 2 x Analog input 4-20mA

Physical Parameters
Dimension(L*W*H) 79.6x 58 x110 (mm)
Housing ABS housing, IP30 protection
Installation Din rail mounting, wall mounting
Weight <300g

EMC protection

ESD IEC61000-4-2,Level 3,class B,contact 6KV,air 8KV
Surge IEC61000-4-5,Level 3,class B
EFT IEC61000-4-4,Level 3,class B

Indicator
POW ON: Gateway is powered up
OFF: Gateway is not power up
WORK When the device is working properly, it blinks for 1s frequency
NET Blinking when the wan connects to internet
OFF when there is no network
DATA Blinking when serial port is transmitting data
DO status Light on, the channel output is activated
DI status Light on, the channel is activated by input signal

Network

Cellular LTE Cat4, Global Frequency
Ethernet 1*WAN/LAN + 1*LAN
10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Cellular

Frequency TDD-LTE: B34/38/39/40/41
FDD-LTE: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66
WCDMA：B1/2/4/5/6/8/19
GSM/EDGE:B2/3/5/8
SIM 1*Micro SIM
Antenna1*SMA-Female

Software
Network Protocols ICMP,IPv4,IP,ARP,TCP,UDP,DHCP,DNS,HTTP,MQTT,SNMP
Acquisition Protocols Mainstream PLC protocols, DLT645, Modbus TCP/RTU
Reporting ProtocolsReporting Protocols Modbus RTU/TCP，OPC UA，Json，BACNET, *IEC104
Configuration methodBuilt-in webpage
Modbus GatewayModbus RTU/TCP protocol conversion
Data cache2G
Linkage controlSupported. Data collection points, DI, and AI can be used as trigger and executed by DO
IP RoutingStatic routing
Firewall√
NTP√
VPNPPTP, L2TP, OpenVPN
SNMP√
Extended Modular√

Others
Approvals CE, FCC, ROHS,WEEE
