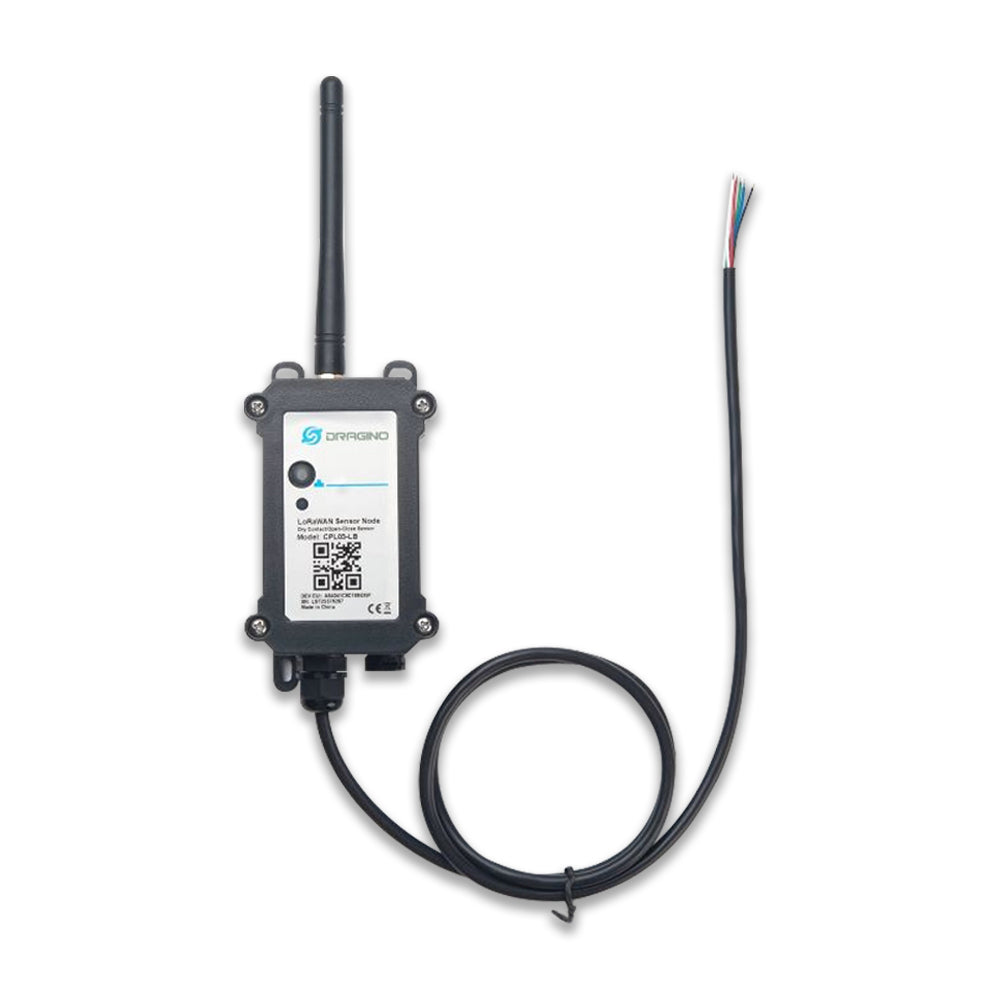

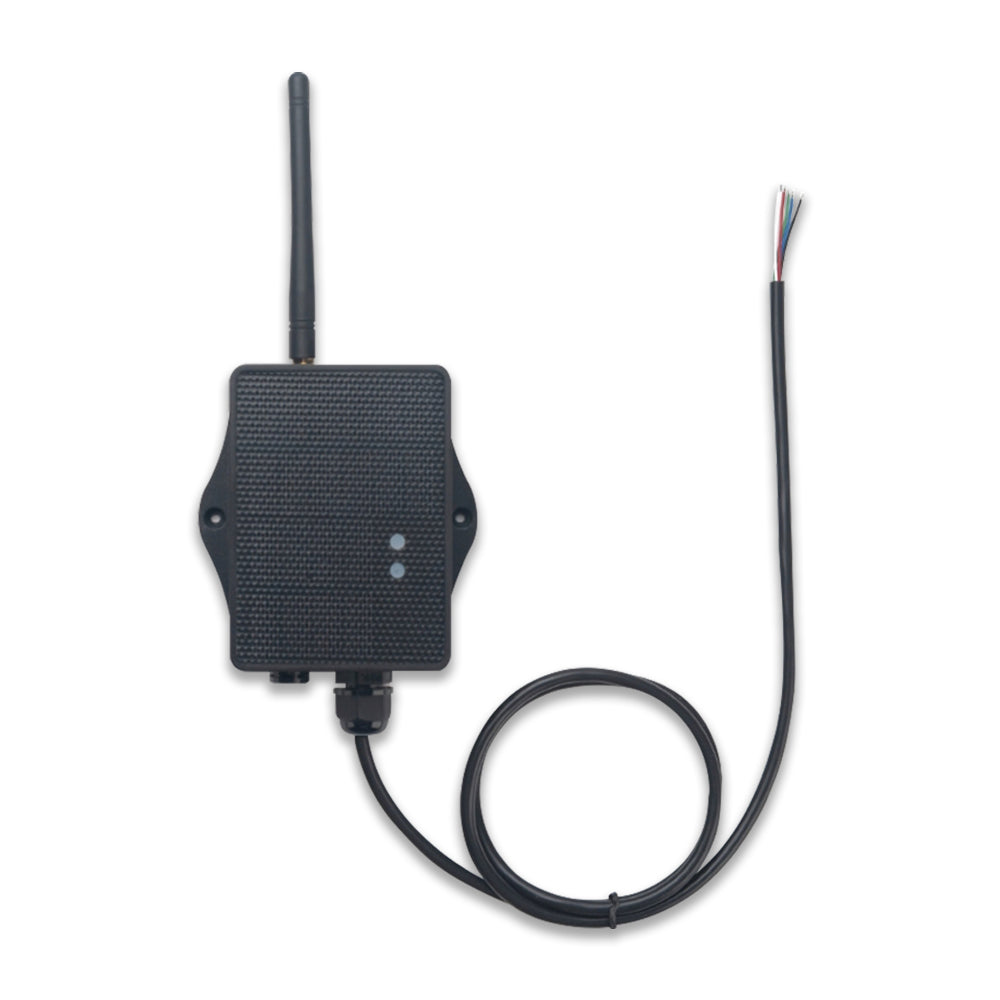

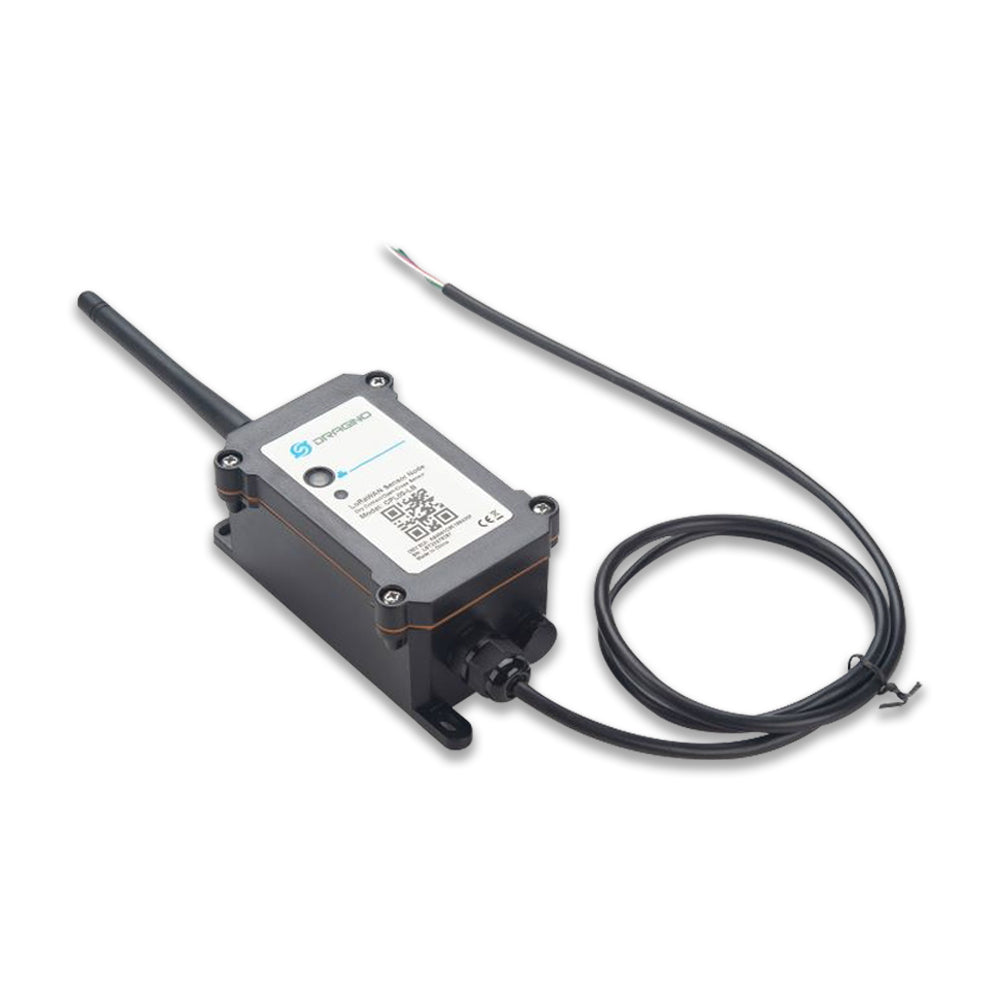

Overview The Dragino CPL03 is an Industrial IoT sensor for various applications. It monitors dry contact status, tracks openings, records durations, and uploads data to an IoT server through LoRaWAN or NBIoT backhaul. The sensor sends data daily and whenever a contact event occurs, with options to disable event uplinks...
Vendor: Dragino
SKU: CPL03-LS
Availability: In Stock
Product Type: Sensor
$108.00
$108.00
Communication Type: LoRaWAN
Batter Type: Solar
Description
Description
x

Overview

The Dragino CPL03 is an Industrial IoT sensor for various applications. It monitors dry contact status, tracks openings, records durations, and uploads data to an IoT server through LoRaWAN or NBIoT backhaul. The sensor sends data daily and whenever a contact event occurs, with options to disable event uplinks and count openings instead.
With LoRaWAN technology, it offers long-range, low-power data transmission with high interference immunity. The sensor features an open alarm, a datalog function for offline storage, and uploads data when the network is restored.
It offers similar functionality through NBIoT networks as well, with the option to upload data via UDP, TCP, HTTP or MQTT directly to application server(s).
Built for outdoor use, it has a weatherproof enclosure and industrial-grade battery for reliable performance in various temperatures. The CPL03 supports BLE configuration and OTA updates, simplifying setup and maintenance. Powered by an 8500mAh Li-SOCI2 battery or solar + Li-ion battery, it lasts up to 5 years. Preloaded with LoRaWAN keys, it connects automatically to the server once powered on.

Brand: Dragino

CPL03 Outdoor IoT Sensor

LoRaWAN Long-Range Communication

With LoRaWAN technology, the CPL03-LB/LS transmits data over ultra-long distances while consuming minimal power. This feature makes it ideal for large buildings, shopping malls, and public spaces, ensuring reliable, uninterrupted data collection.

LoRaWAN

NBIoT cellular communication

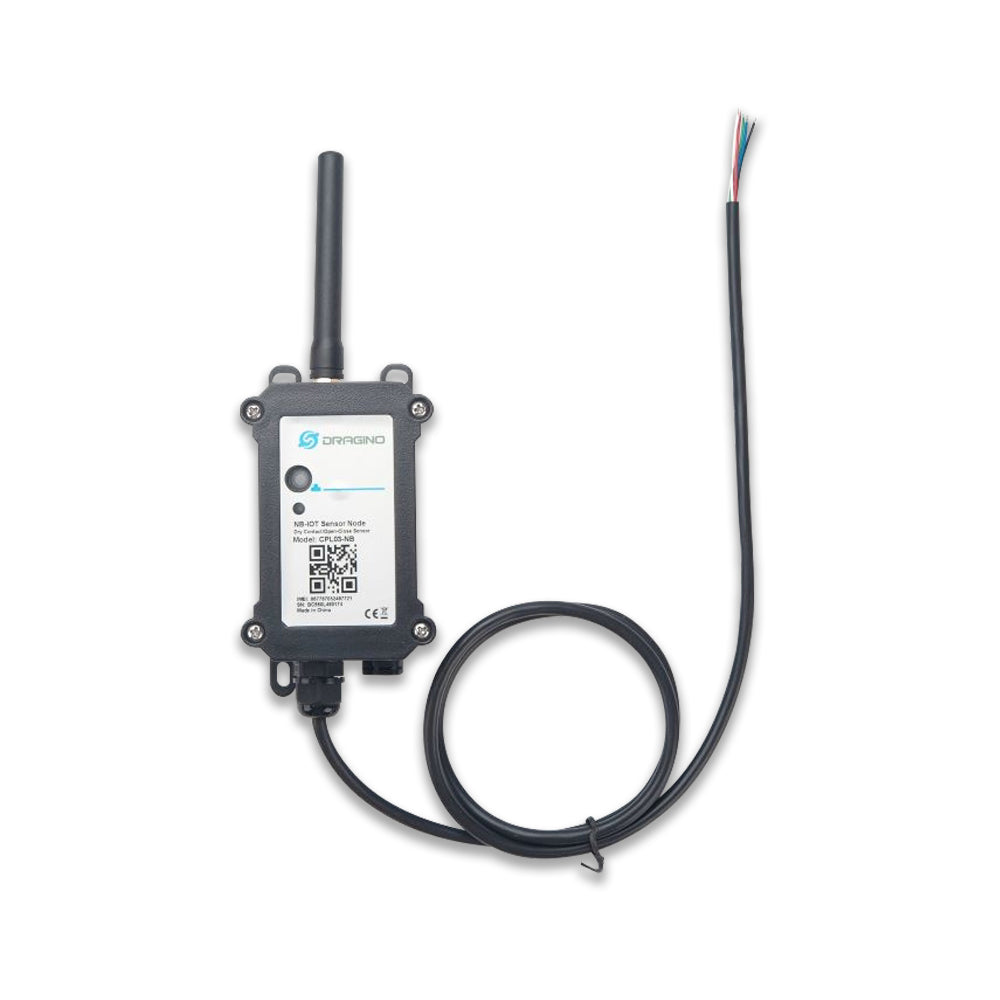

Fully compatible with Australian telcos narrow band network, CPL03-NB/NS can also upload data via existing cellular network with ultra low power consumption.

NBIoT

Ultra-Low Power & Long Battery Life

Designed for long-term deployment, the sensor is powered by a 2400mAh battery, allowing up to 5 years of operation without frequent maintenance. This energy-efficient design reduces the need for battery replacements, making it cost-effective and reliable.

CPL03 Long Battery Life Sensor

BLE Configuration & OTA Updates

The device supports Bluetooth Low Energy (BLE) configuration and over-the-air (OTA) firmware updates, enabling users to set up and upgrade the device remotely. This eliminates the need for manual intervention, simplifying deployment and maintenance.

Bluetooth Low Energy

Smart Data Logging

The CPL03-LB/LS captures and logs people count data over time, allowing users to analyze trends and patterns. This feature helps organizations track foot traffic, monitor peak hours, and optimize resource allocation for better operational efficiency.

Smart Data Logging

Details

CPL03 Outdoor IoT Multi-channel Contact and Pulse Sensor
Specification
Specification
x

Common DC Characteristics
Supply Voltage Built-in Battery , 2.5v ~ 3.6v
Operating Temperature -40 ~ 85°C

LoRa Spec
Frequency Range, Band 1 (HF) 862 ~ 1020 Mhz
Max +22 dBm constant RF output vs.
RX sensitivity down to -139 dBm.
Excellent blocking immunity

Battery
Li/SOCI2 un-chargeable battery
Capacity 8500mAh
Self-Discharge <1% / Year @ 25°C
Max continuously current 130mA
Max boost current 2A, 1 second

Power Consumption
Supplement Light Type IR
Sleep Mode 5uA @ 3.3v
LoRa Transmit Mode 125mA @ 20dBm, 82mA @ 14dBm
