Description
xOverview

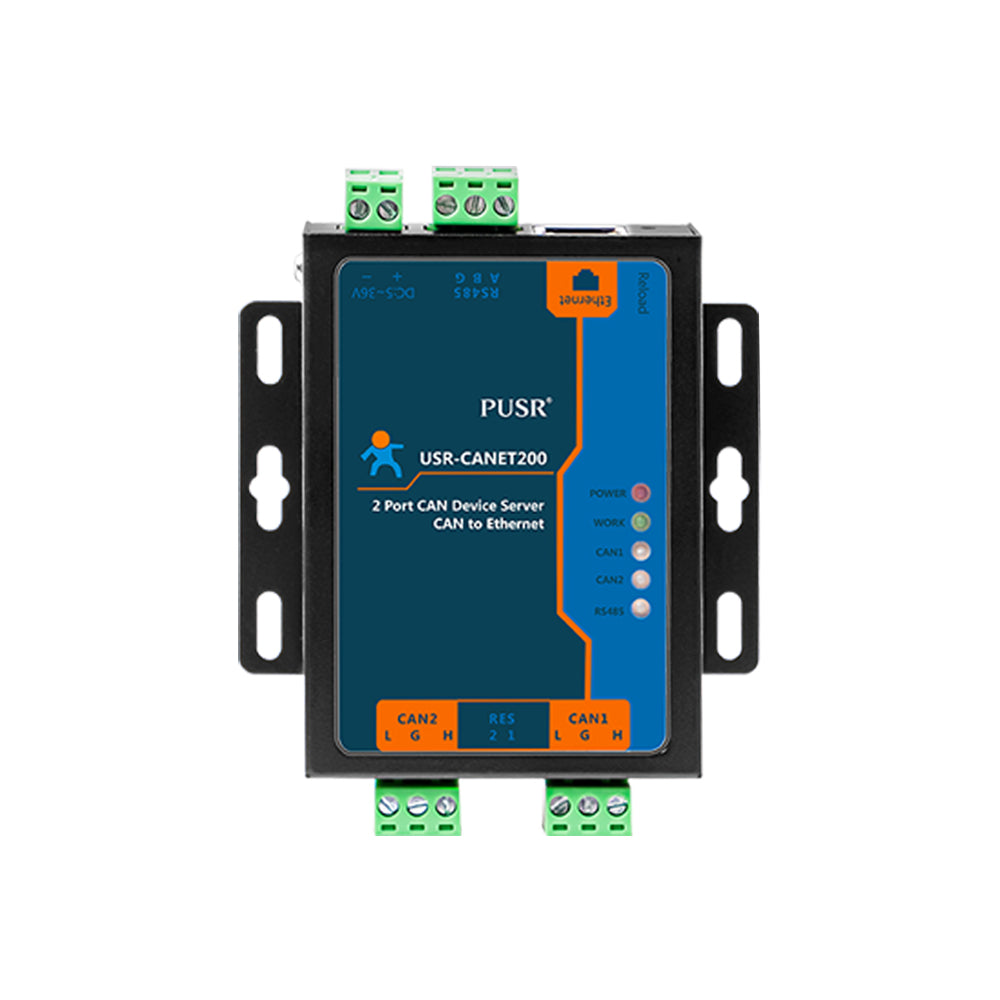

USR-CANET200 Industrial CAN to Ethernet Converter is a high-performance solution designed to enable seamless data communication between CAN-bus and Ethernet networks. Featuring two CAN ports and one Ethernet port, it supports TCP/IP protocol, making it ideal for extending CAN networks in industrial environments. The device operates reliably in extreme temperatures ranging from -40°C to 85°C, and allows data transfer between three types of networks: CAN to Ethernet, CAN to RS485, and Ethernet to RS485. With dual socket support, it can connect to two servers simultaneously—one for control and another for management. Built-in protection features include reverse power protection, surge protection on the CAN interface, and digital isolation to ensure stable performance. The hardware and software watchdog mechanisms further enhance system stability and prevent communication failures, making USR-CANET200 the ideal choice for industrial CAN to Ethernet communication applications.
CAN relaying
increase communication distance
Expand CAN network
Transfer among three networks
CAN transfer to Ethernet
CAN transfer to RS485
Ethernet transfer to RS485
Dual Socket
CAN to Ethernet converters USR-CANET200 support two sockets to connect to two servers.
Basic Function of CAN to Ethernet converters USR-CANET200
Bidirectional transmission among the CAN1 interface, the CAN2 interface, the RS485 interface and the Ethernet interface.
Support CAN relaying function(Bidirectional transmission between CAN1 and CAN2) and CAN to RS485 function.
Hardware Interfaces of CAN to Ethernet Converters USR-CANET200
Functional Diagram
Wide temperature range
Wide voltage range
Industrial grade design that can meet temperature and voltage demands in various application fields.
Interface Protection
EFT
ESD
Watch-Dog
Application
Charging Pile Solution
Expand charging pile management scope to save cost.
Extend communication distance through CAN relaying function.
Real-time monitoring for all charging piles status to control the project status in a timely.
Building Control Solution
Industrial grade design that can adapt to an outdoor, harsh environment.
Flexible application - Transfer among CAN interface, Ethernet interface and RS485.
Take real-time information of different buildings into account and transmit this information to the remote server to make overall plans.
Mine Monitoring Solution
Realize real-time transmission of mine data such as pressure, dust, humidity temperature to ensure production safety.
Watch-dog mechanism which can bring powerful anti-interface capability.
Extend system communication distance through the CAN relaying function, which can provide convenience in arranging the monitoring node.
Specification
xHardware Parameter | |
| Working voltage | DC 5~36V |
| Working current |
Average 26mA@36V. Average 56mA@12V. Average 124mA@5V. |
| Power supply protection |
Power supply surge: Level three. Group pulse: Level three. |
| Ethernet interface specification | RJ45, 10/100Mbps, support Auto-MDI/MDIX |
| Ethernet interface protection | 1.5KV electromagnetic isolation |
| Serial port | RS485 |
| Serial port baud rate | 600~115.2K(bps) |
| CAN baud rate | 10K~1M(bps) |
| CAN work mode | Basic, loopback |
| CAN protection | Power supply isolation, signal isolation |
Software Parameter | |
| Network protocol | IPV4, TCP/UDP |
| How to get IP | Static IP, DHCP |
| Configuration method | Web Server, serial/network AT command |
| TCP Server connection |
Support at most four TCP Client connections; serial server only support one Client connection |
| CAN receiving capability | 8000 frames every second (Every way) |
| CAN transmitting capability | 8000 frames every second (Every way) |
| Network cache | Transmitting: 16K bytes; receiving: 16K bytes. |
| CAN cache |
Transmitting: two hundred complete data packets (Every way); receiving: two hundred complete data packets (Every way). |
| Serial cache | Transmitting: 2K bytes; receiving: 2K bytes. |
| Flow control | Don’t support. |
| Heartbeat packet |
CAN: Support user editable heartbeat packet (CAN data packet that conforms to transparent transmission protocol). Serial port: Support user editable heartbeat packet. |
| Identity packet |
CAN: Support user editable, MAC, USR Cloud identity packet. Serial port: Support user editable, MAC, USR Cloud identity packet. |
| Average transmission delay | <20 ms |
Other Parameter | |
| Working temperature | -40~85℃ (Industrial level) |
| Storage temperature | -40~105℃ |
| Dimensions | 96.5*94*25mm (L*W*H) |
| Working humidity | 5~95%RH |
| Storage humidity | 5~95%RH |
