Description
xOverview

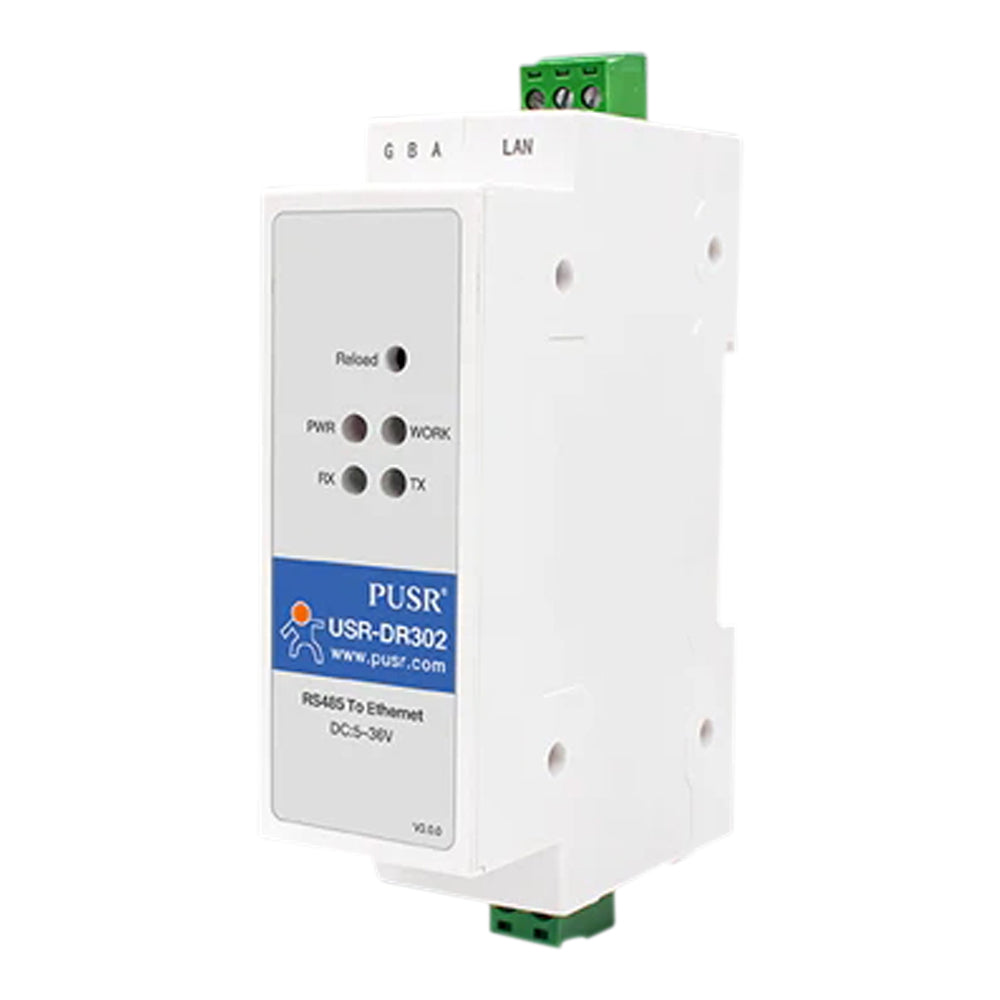

DIN-Rail RS485 to Ethernet Converters (USR-DR302) enable seamless transparent data transmission between TCP/IP and RS485, making them an essential component in industrial automation systems.
Brand: PURS
Function Diagram
Working mode
Work as Modbus Gateway
More Functions
Product Details
PC+ABSC material, portable, low cost, V0 flame retardant,ensure the safety of the product.
Applications
Power data networking transmission
Small size which is available for narrow space;DIN-Rail mounting, easy to install on the wall;The terminal data of the distribution box can quickly convert into the network data,real-time communication, reduce the cost effectively.
Unattended Weighing
Connect serial to ethernet converter USR-DR302 to barrier gate and it can realize remote control of barrier gate by Ethernet in control center.
Traffic Lights Management System
Connect serial to Ethernet converter USR-DR301, and it can realize traffic data acquisition and processing by Ethernet in the control center. And the control room personnel can quickly make traffic scheduling and planning according to the site condition.
Specification
xHardware |
|
| Work Voltage | DC 5.0～36.0 V |
| Work Current | 130mA@5V |
| Ethernet Port | RJ45,10/100Mbps |
| Serial Port Baud Rate | 600-460.8K (bps) |
| Serial Port | RS485*1 |
Software |
|
| Network Protocol | TCP/IP, UDP, ARP, ICMP, IPV4 |
| IP Type | Static IP, DHCP |
| DNS | Support |
| Configuration | Software, Web-page, AT command |
| Work Mode | TCP Server/TCP Client/ UDP Server/UDP Client Modbus RTU to TCP |
| Similar RFC2217 | Support |
| httpsd Client | Support |
| TCP Server Connection | Support to connect max 8 TCP client |
| Network Caching | Send: 6Kbyte, Receive:4Kbyte |
| Serial Port Caching | Receive:2Kbyte |
| Average Transmission Delay | <10ms |
| Software | VCOM, USRIOT_Cloud, Setup software, test proforma |
| Packaging Mechanism | 4 bytes package time 1024 bytes package length |
Others |
|
| Certificate | CE, RoHs,FCC |
| Grade | IP30, 1.5KV |
| Size | 71.0x60.0x25.0mm |
| Work Temp | -40～85c℃ |
| Storage Temp | -40～105℃ |
| Work Humidity | 5%～95% RH |
| Storage Humidity | 5%～95% RH |
