Description
xOverview

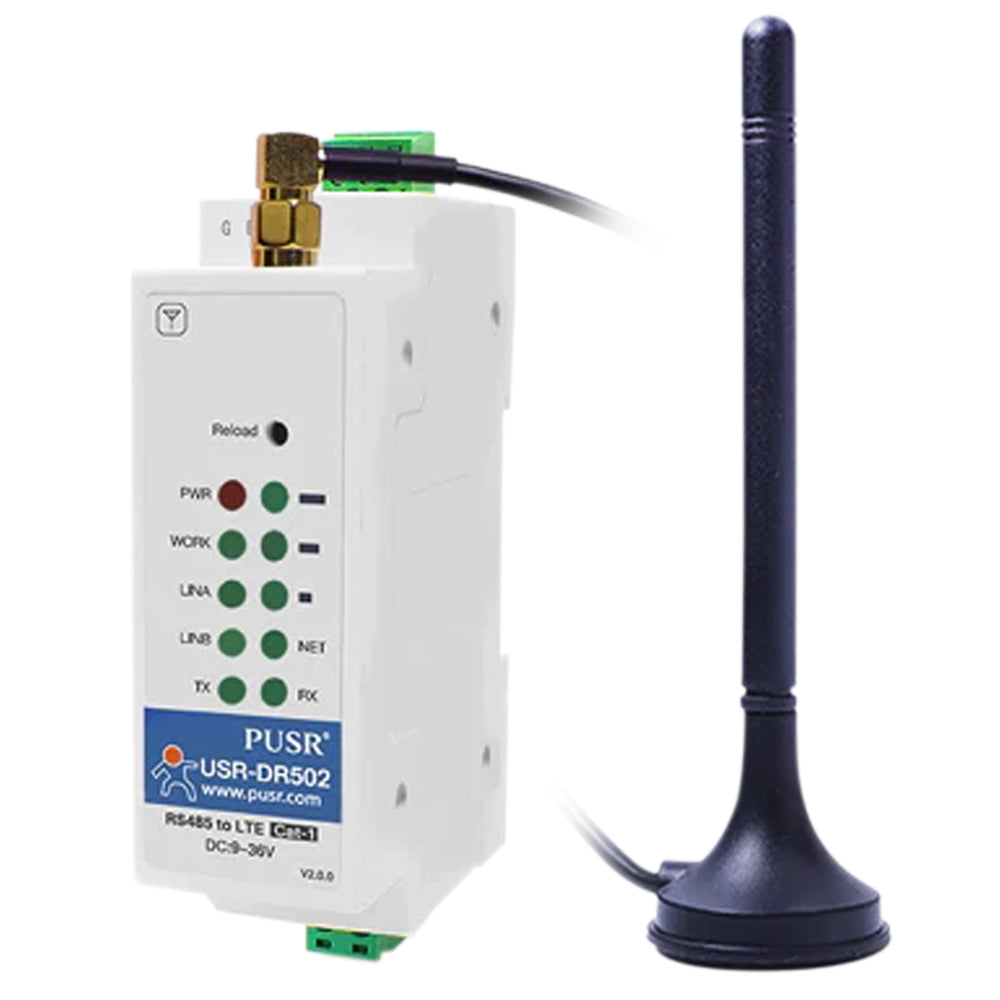

The USR-DR502-E is an advanced LTE CAT 1 communication modem, designed to deliver reliable connectivity with support for LTE and GSM networks. Compatible with the mainstream frequency bands of European operators, this modem ensures seamless integration. It offers a range of robust software functionalities, including TCP/UDP transparent transmission, SMS transmission, HTTPD Client mode, and versatile AT command support, making it ideal for various IoT applications. With its powerful features and wide compatibility, the USR-DR502-E is the perfect solution for businesses seeking reliable and efficient communication solutions.
Brand: PURS
Operation Mode
FOTA Remote Upgrade
Hardware Protection
Application Case
Specification
xFrequency Bands |
|
| LTE FDD | B1/B3/B7/B8/B20/B28 |
| GSM | 900/1800MHz | TXPower |
| GSM | 900MHz: 33dBm±2dB |
| GSM | 1800MHz: 30dBm±2dB |
| FDD | B1/3/7/8/20/28: 23dBm±2dB |
RxSensitivity |
|
| GSM | 900MHz：-109.5dBm |
| GSM | 1800MHz：-108dBm |
| FDD | B1/3/20：-98dBm |
| FDD | B7：-97.5dBm |
| FDD | B8/B28：-98.5dBm |
Transmission Speed |
|
| UART | RS485 (3PIN) |
| USB | 2.0 |
| USIM | 3.0V/1.8V, Micro SIM 3FF |
| RF | SMA |
| Indicators | PWR,WORK,NET,LINK,Tx,Rx,RSSI |
| Reload | Button |
| Installation | DIN-rail mounting |
Software |
|
| TCP /UDP/IPV4/IPV6/HTTP/MQTT/DNS/SSL/TLS ECM/RNDIS/PPP FOTA/VoLTE/NTP/FTP SMS:MO/MT Text and PDU modes TCP/UDP/HTTPD/SMS transparent transmission CMDmode,ATcommandoperation Socket Distribution Protocol Base station geolocation |
|
Hardware Characteristics |
|
| Power | 9~36V |
| Power Consumption | ＜3W |
| Dimensions | 28mm x 64.7mm x 109.7mm |
| Operating temperature | -30℃~+75℃ |
| Expansion temperature | -40℃~+85℃ |
| Storage temperature | -40℃~+85℃ |
| Relative Humidity | 5%~95%(non-condensing) |
Audio |
|
| Cache | 20 packets,maximum 4096 byte per packet |
| Baudrate | 600~230400bps |
| Parity | NONE/ODD/EVEN |
| Data | 8 |
| Stop | 1/2 | Certifications |
| CE/RoHS | |
