Description
xOverview

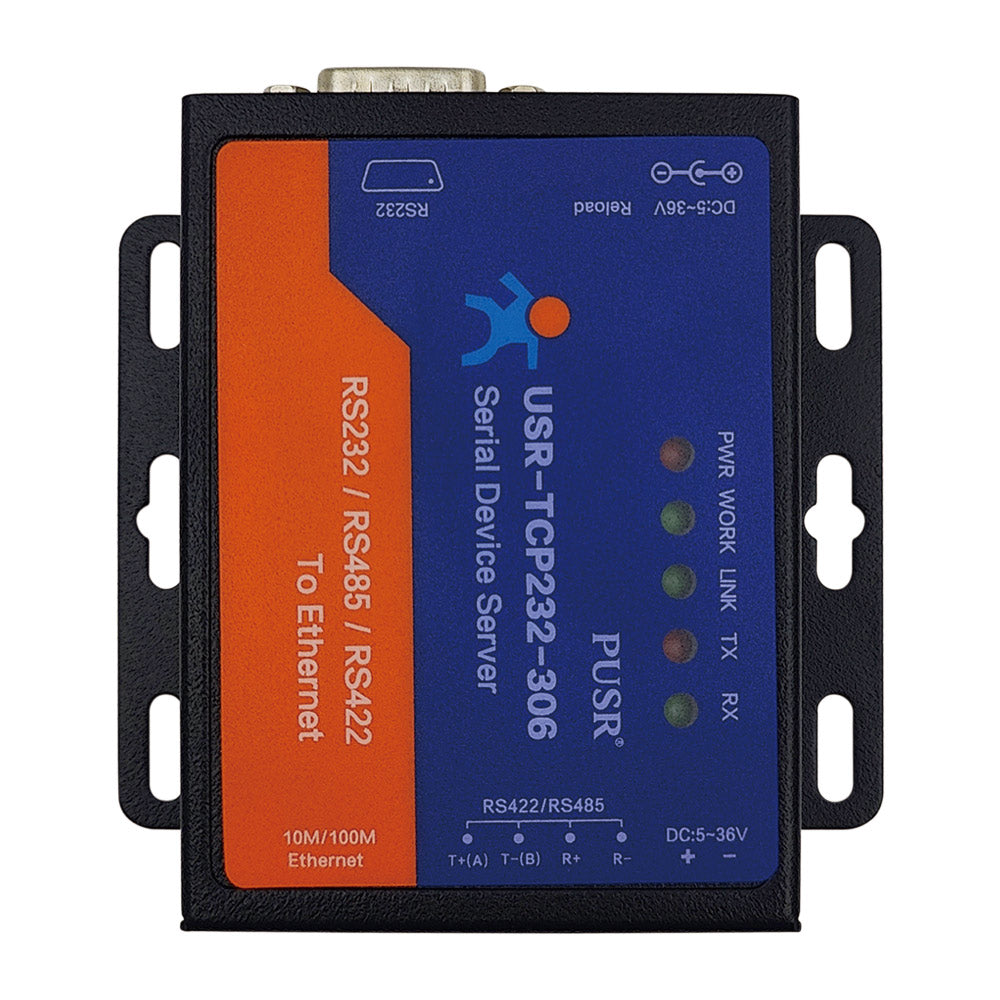

The USR-TCP232-306 Ethernet to Serial Converter supports both RS232 and RS485 interfaces, offering flexible connectivity options. However, it can only operate on one interface at a time. With a user-friendly configuration process, this device ensures easy setup and reliable performance.
Brand: PURS
Serial to Ethernet, Bidirectional Transparent Data Transmission
Work As Modbus Gateway
Connect seamlessly to PLCs, SCADA systems, or private servers for efficient local or remote monitoring and control. Enhance system performance with reliable integration, ensuring real-time data access and improved operational efficiency for industrial automation solutions.
Multiple User Scenarios
Multi-user Access
Multi-device Management
Virtual-COM Software
This innovative feature enables the infinite extension of serial cables, breaking distance limitations and ensuring seamless communication over vast distances. By overcoming traditional constraints, it provides a reliable and efficient solution for long-distance data transmission, making it ideal for diverse applications in industries and networks.
Point-to-Point Communication
Achieving seamless data communication between two serial devices is possible using this method, ensuring efficient and reliable transmission. By optimizing serial connections, businesses can enhance system performance and streamline operations, making this solution ideal for applications requiring precise and consistent data exchange.
Additional Features
High-Reliability Design
Applications
Intelligent Transportation
By integrating traffic lights with a serial device server, the control center can efficiently collect and process real-time traffic data via Ethernet. This data enables accurate traffic monitoring, providing essential insights for traffic command, dispatch, and the enforcement of city traffic regulations. With precise, quantitative data at their fingertips, traffic management systems can enhance urban mobility and optimize traffic flow.
Unattended Weighing
By connecting a serial server to the gate, the control center can conveniently manage the gate switch remotely via Ethernet. Additionally, multiple serial servers can be used to connect various peripheral devices such as serial cameras, weighing instruments, LED displays, RFID card readers, vehicle induction coils, ticket printers, and more, providing seamless integration and control for a wide range of applications.
Product Details
Specification
xHardware |
|
| Processor | ARM Cortex-M0, 48MHz |
| Power Input | DC 5.0～36.0 V Connector: 5.5*2.1 mm & 2 pin terminal block |
| Consumption | 116mA@5V, 53mA@12V |
| Ethernet Port | 1 x RJ45, 10/100Mbps, auto MDI/MDIX | Serial Port | RS232/485/422(Not work at the same time) |
| Baud Rate | 600~230.4 Kbps/td> |
| Data Bits | 5,6,7,8 |
| Stop Bit | 1,2 |
| Parity Bit | None, Odd, Even, Mark, Space |
| Serial Packeting | Packeting Time: Four-byte sending time Packeting Length: 400 Bytes |
| Serial Packet Cache | Receive:2KBytes |
| Reload Button | √ |
Physical Parameters |
|
| Dimension(L*W*H) | 98.0×86.0×25.0 mm |
| Installation | Wall Mounting |
| Work Temp | -25~75℃ |
| Storage Temp | -40～105℃ |
| Work Humidity | 5%～95% RH |
| Storage Humidity | 5%～95% RH |
| Indicators | PWR, WORK,LINK,TX,RX |
Others |
|
| Network Protocol | IP, TCP/UDP, DHCP, RCMP, HTTP, IPv4, DNS |
| IP Mode | DHCP, STATIC IP |
| DNS Service | √ |
| Config Method | AT Command, Built-in webpage, Config Software, Config Protocol |
| Work Mode | TCP Server/TCP Client/UDP Server /UDP Client/Httpd Client |
| Modbus Gateway | Modbus RTU to Modbus TCP, Multi-host Modbus Polling |
| User-Defined Webpage | √ |
| TCP Server | 16 clients |
| Network Packet Cache | Send: 6K Bytes Receive: 4K Bytes |
| Additional Features | RFC2217 Similar, Heartbeat Packet, Registration Packet, Index, No Data Restart |
Others |
|
| Certificate | CE, RoHs,FCC |
| Grade | IP30, 1.5KV |
